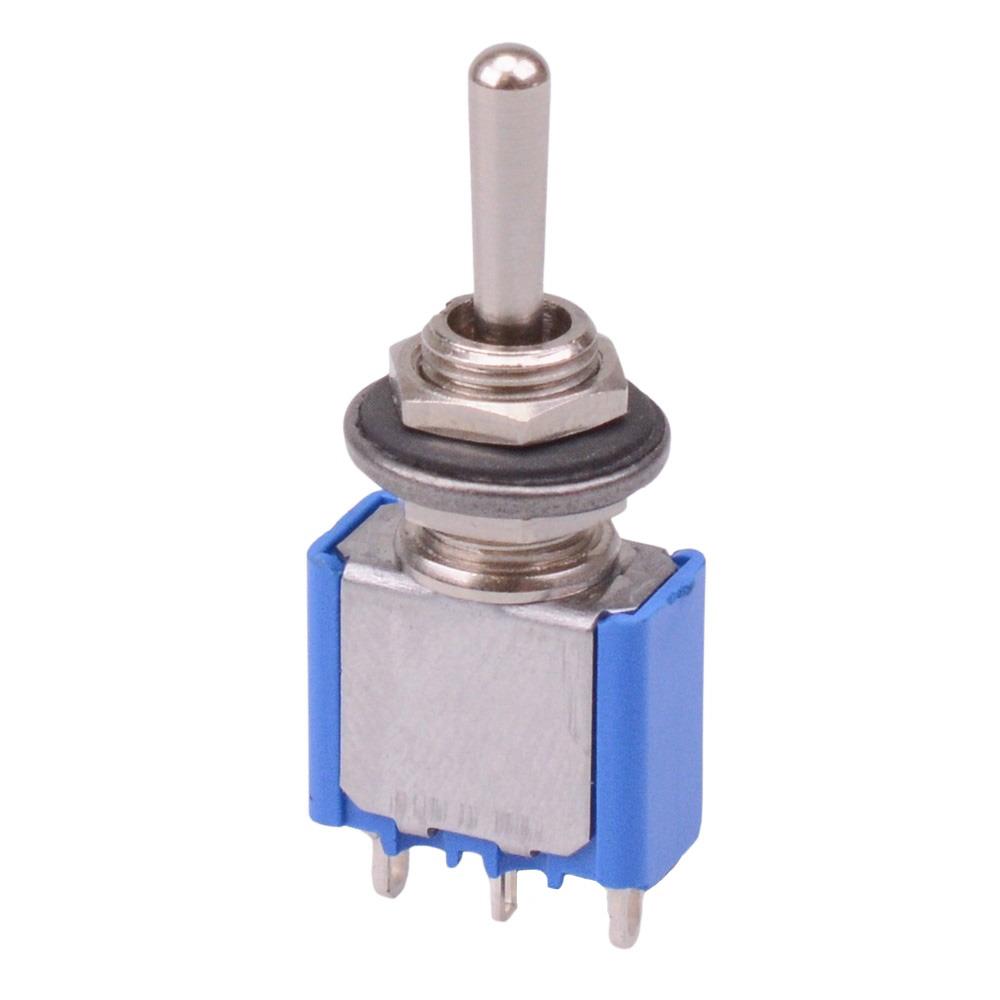

5639AK APEM On-Off-On Miniature Toggle Switch Sealed SPDT

The 5639AK is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

Silver contacts

Epoxy sealed terminals

Front panel sealing by one O-ring and sealing washer

Round 10.5mm length lever

Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
