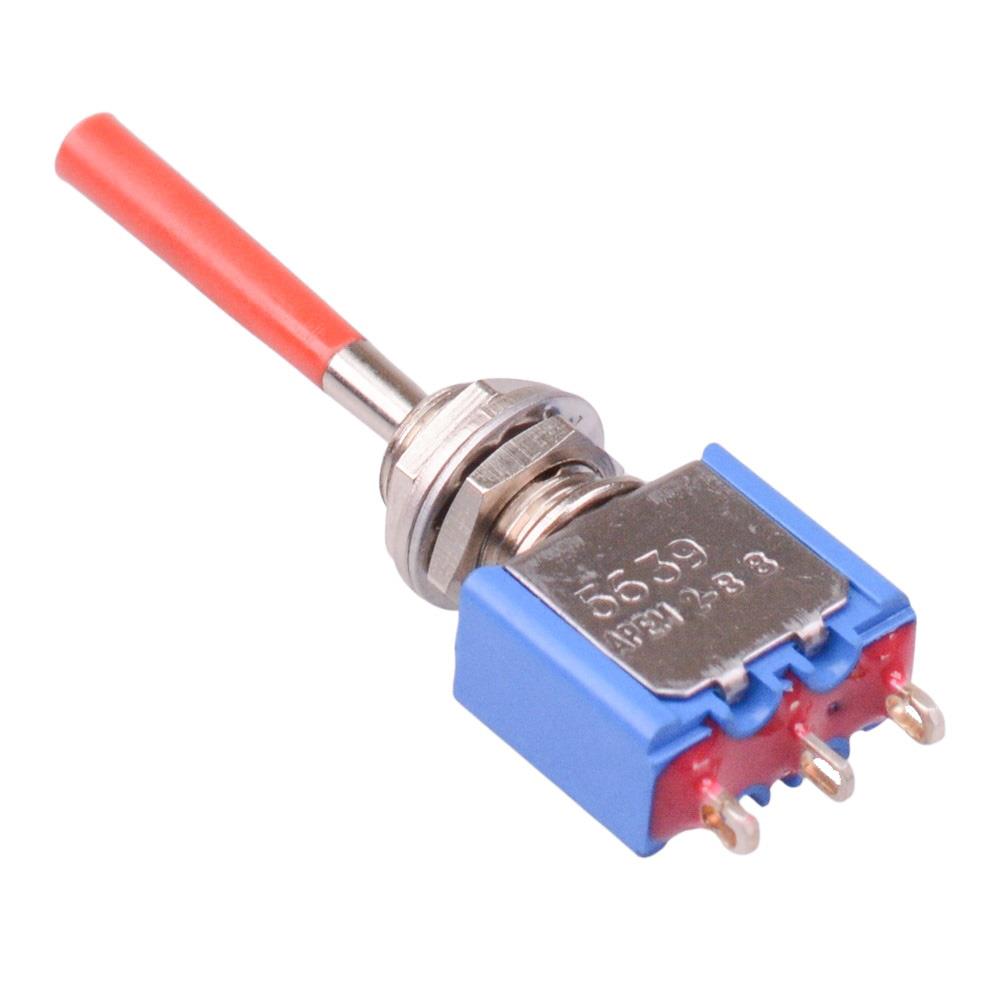

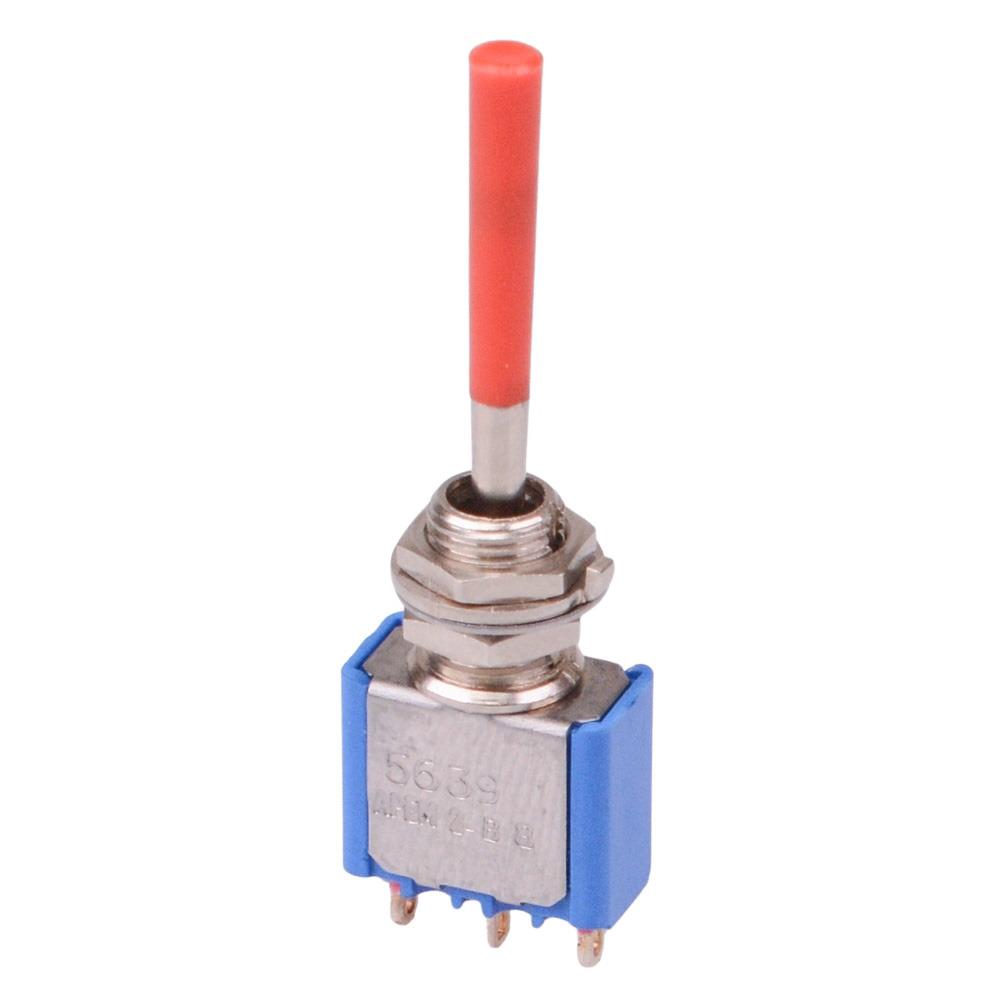

5639AB-21+U646 APEM Red Long Lever On-Off-On Miniature Toggle Switch SPDT

The 5639AB-21+U646 is a miniature toggle switch featuring On-Off-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

23.1mm length lever

Silver contacts

Epoxy sealed terminals

Dimensions: 34.2 x 7.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
