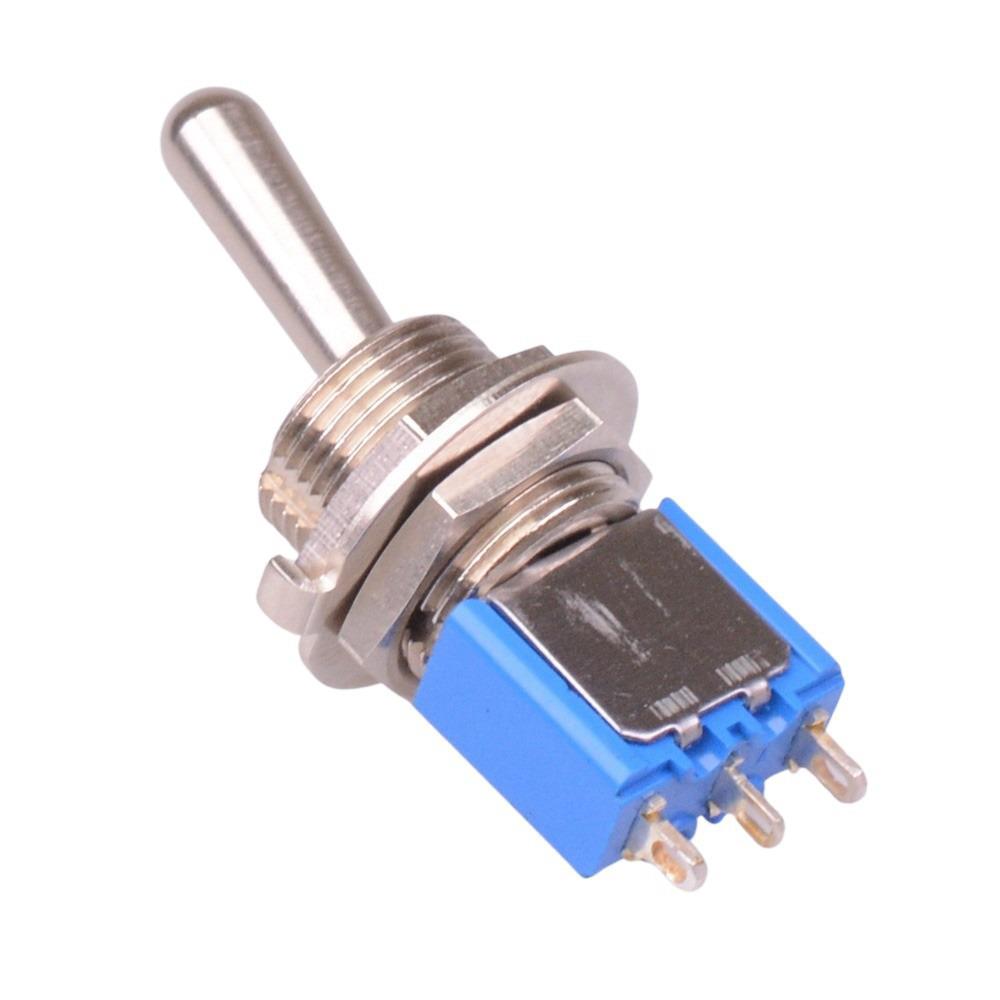

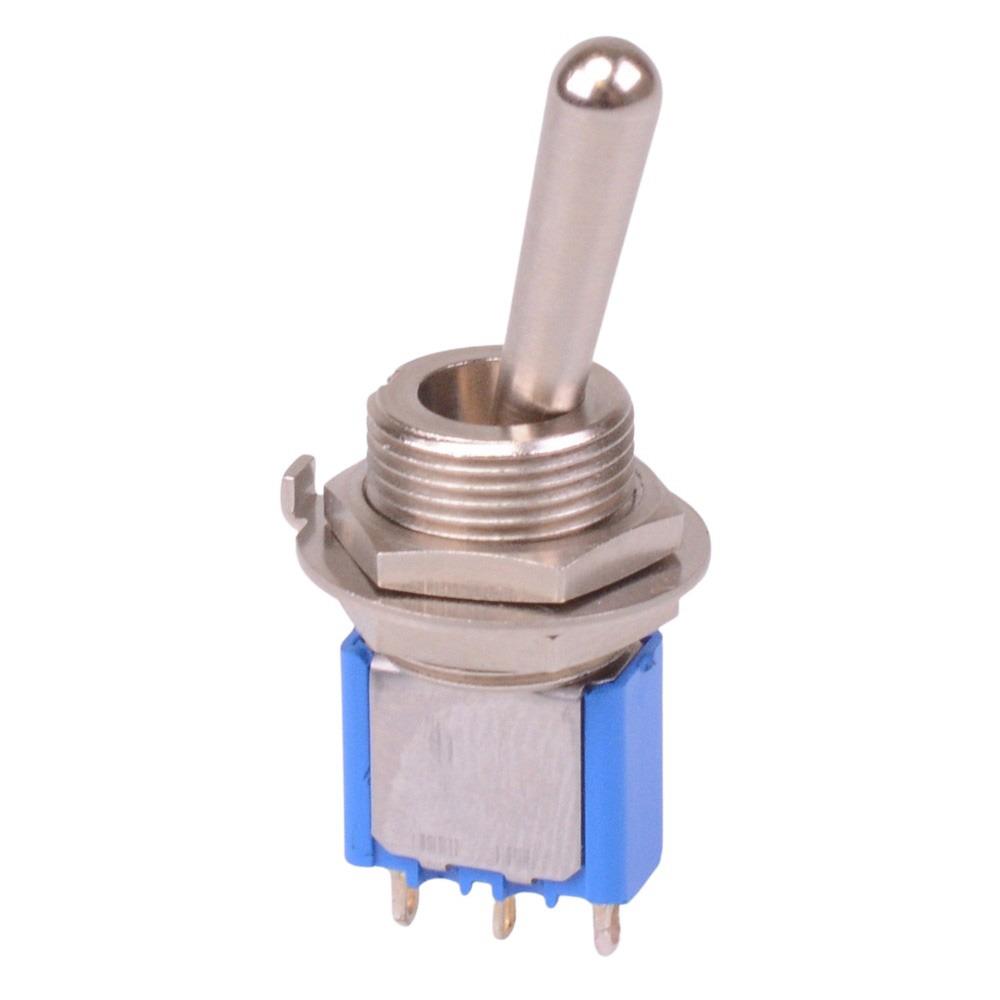

5636MA APEM On-On Miniature Toggle Switch 11.9mm Bushing SPDT

The 5636MA is a miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature solder lug terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

Solder lug terminals

Contact rating: 4A 30VDC

Panel cut-out: 12.5mm

10.5mm length round lever

Silver contacts

Epoxy sealed terminals

Dimensions: 37.1 x 7.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
