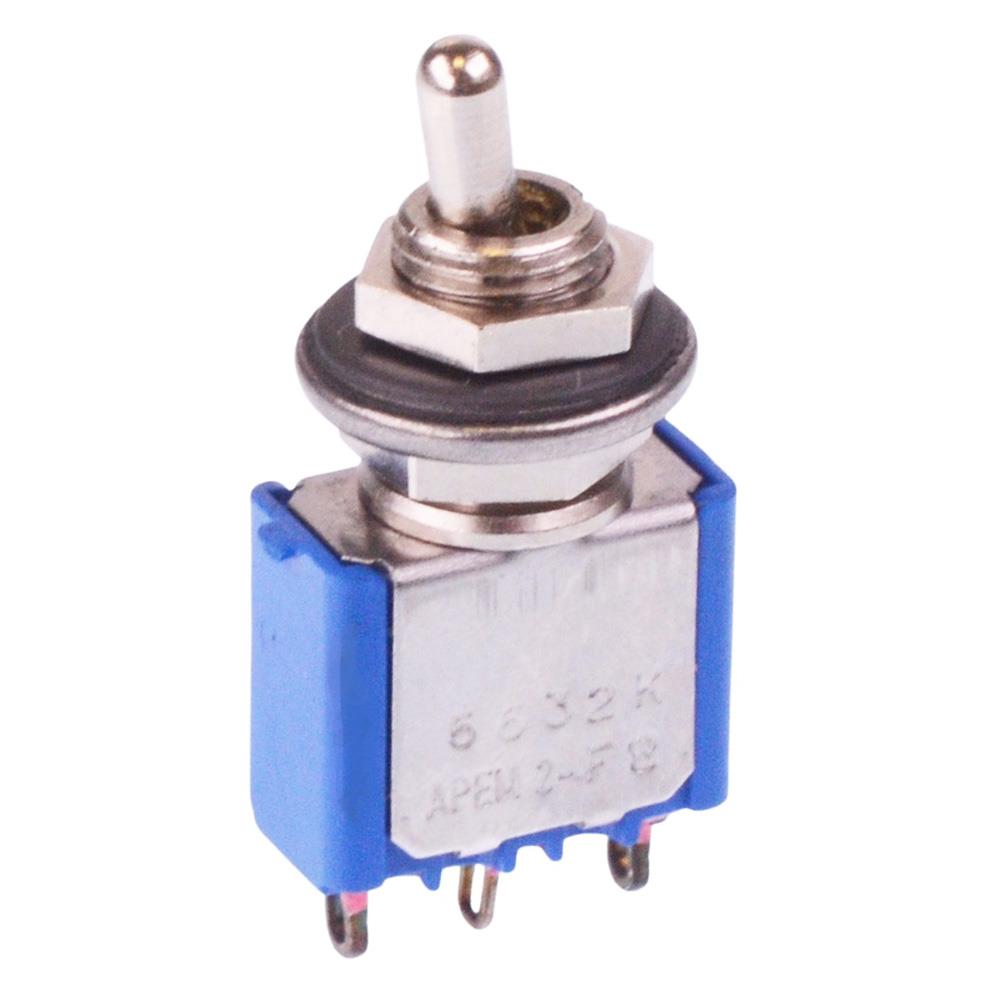

5632AKB16 APEM On-(On) Momentary 6.35mm Miniature Toggle Switch SPDT 4A 30VDC

The 5632AKB16 is a miniature toggle switch featuring a 6.35mm bushing and On-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature solder terminals making them suitable for a wide range of panel mount applications.

SPDT contacts

On-(On) momentary operation

Solder terminals

Lever: round 5.5mm length

Rating: 4A 30VDC

Panel cut-out: 6.5mm

Epoxy sealed terminals

APEM 5000 series
