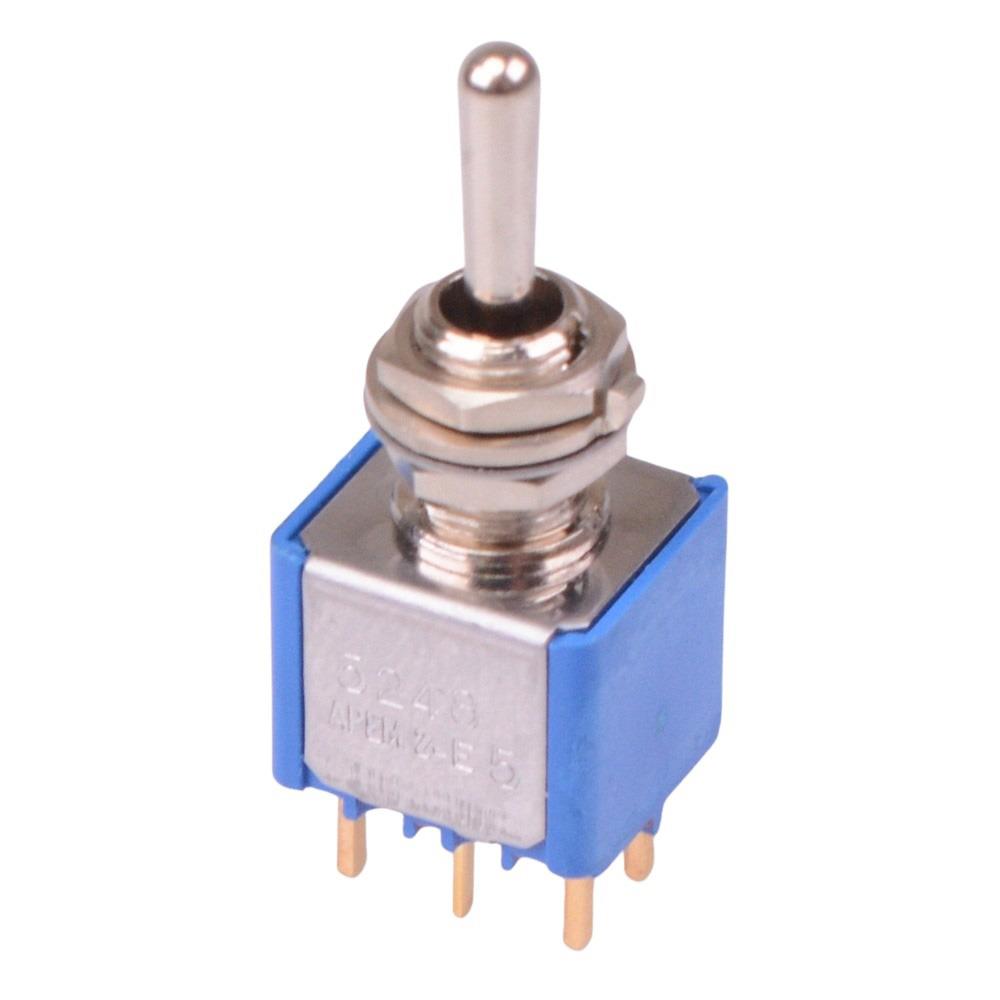

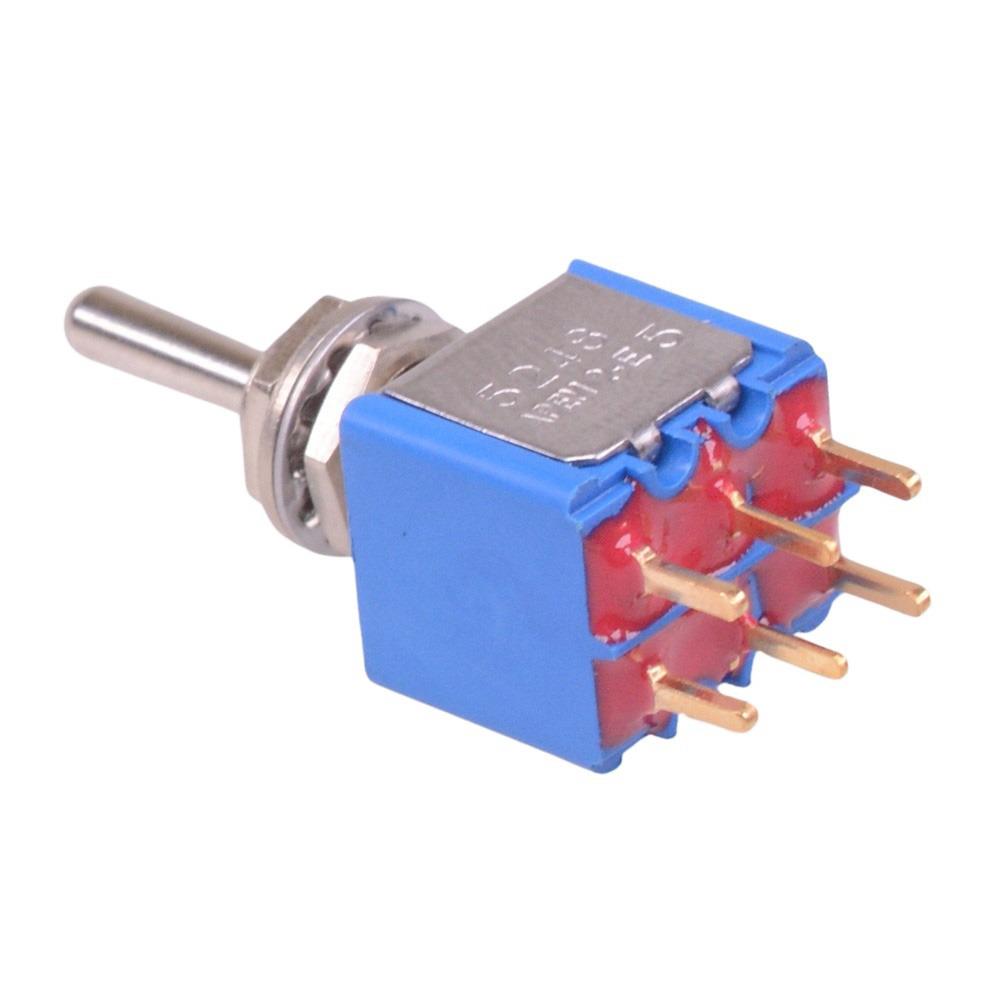

5248CDB APEM On-Off-(On) Momentary PCB Miniature Toggle Switch DPDT

The 5248CDB is a miniature toggle switch featuring On-Off-(On) momentary DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

PCB solder terminals

Contact rating: 4A 30VDC

Panel cut-out: 6.5mm

Gold plated brass contacts

Epoxy sealed terminals

10.5mm round lever

Dimensions: 34.2 x 12.0 x 13.2mm (height x depth x length)

UL, CSA, CECC approved

APEM 5000 series
