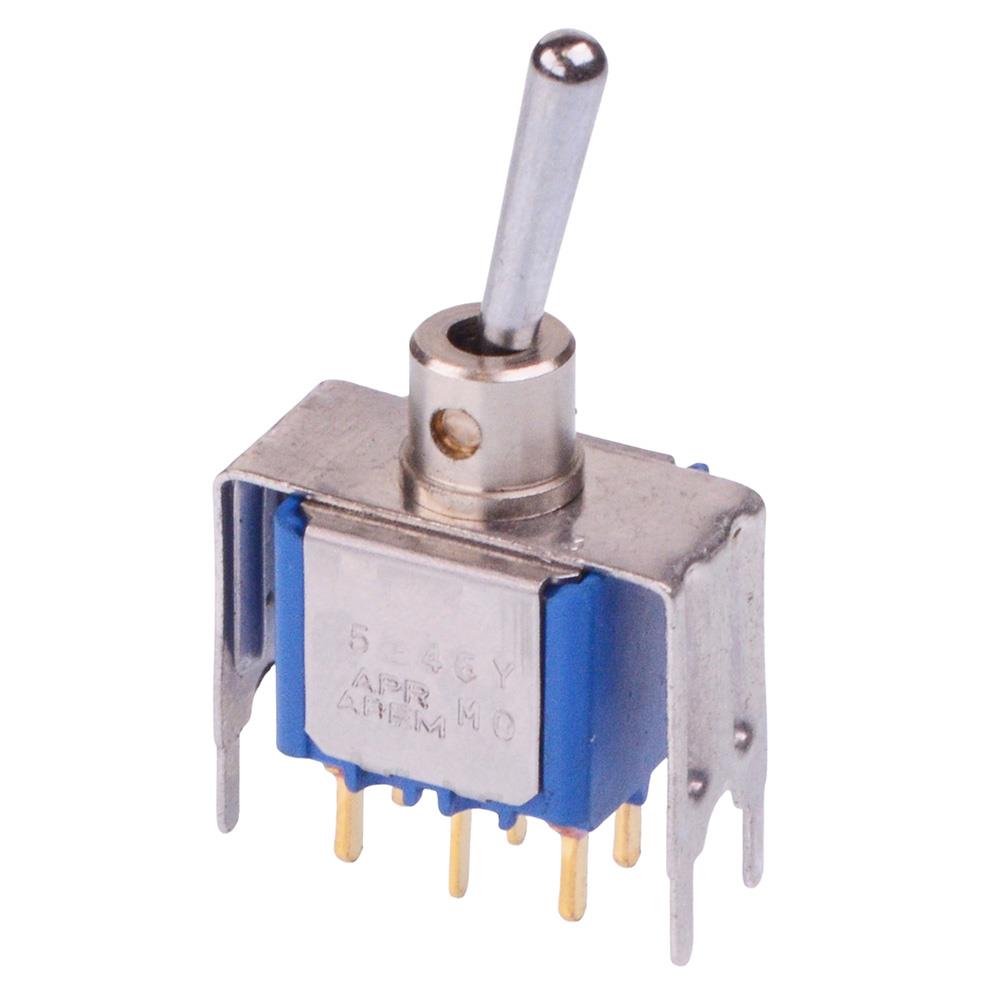

5246Y6CDB13 APEM On-On Miniature PCB Toggle Switch DPDT

The 5246Y6CDB13 is a miniature toggle switch featuring a plain bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of PCB mount applications.

DPDT contacts

On-On operation

Bracket mounting

PCB terminals

Lever: round 12.5mm length

4.7mm pitch terminal spacing

Rating: 0.4VA 20VAC/DC

Epoxy sealed terminals

APEM 5000 series
