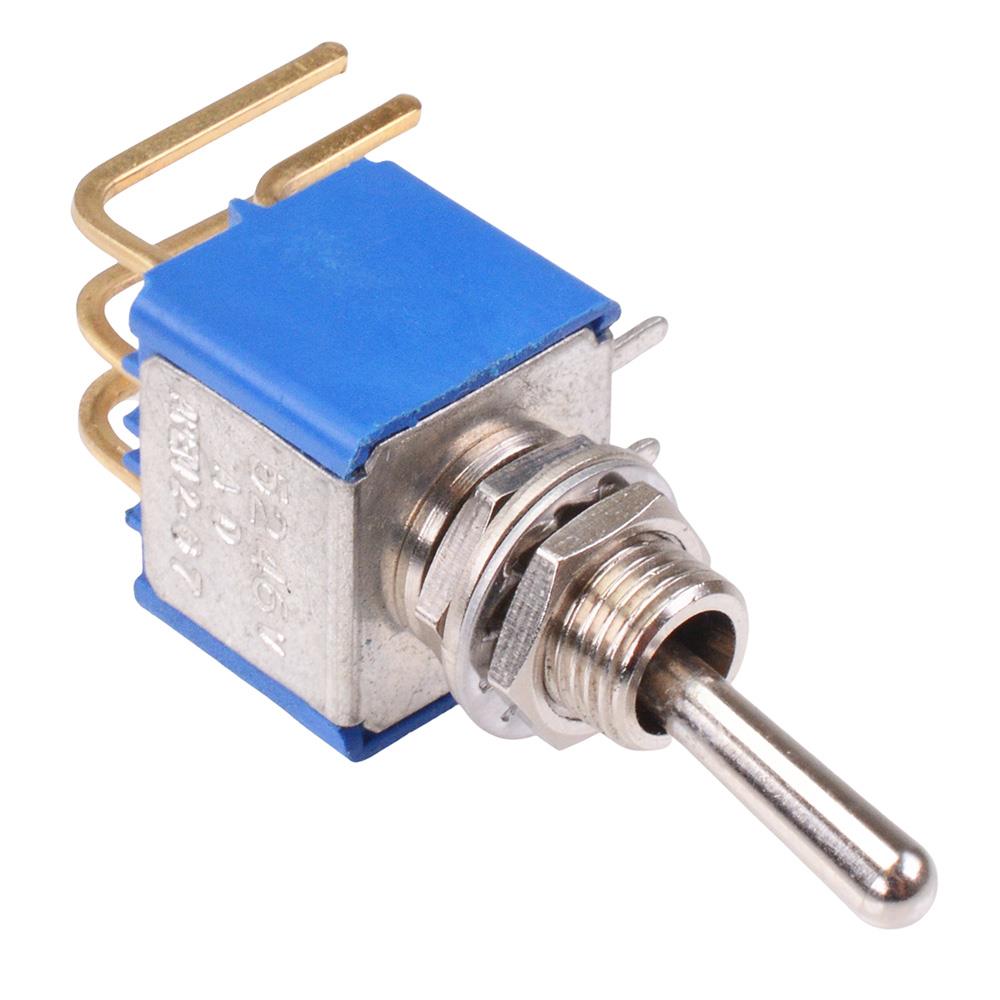

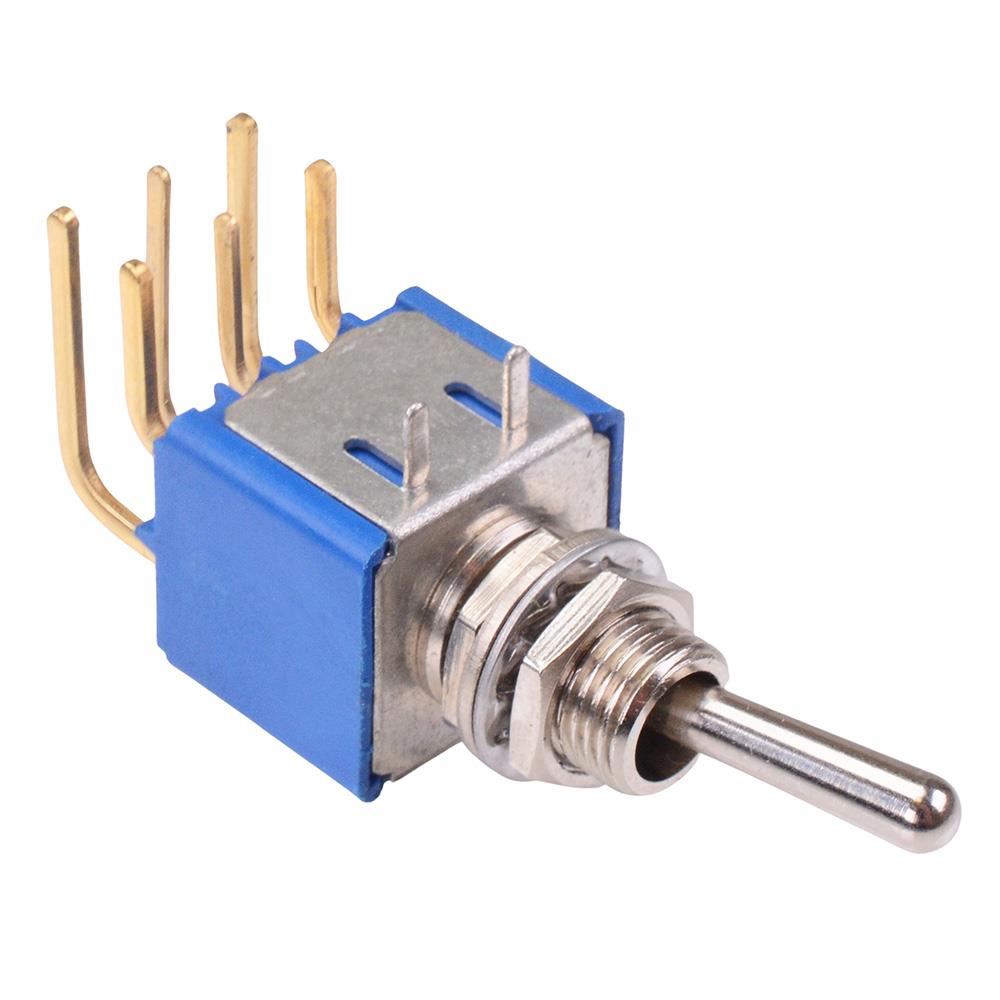

5246WADX386 APEM On-On 6.35mm Miniature Toggle Switch DPDT 4A 30VDC

The 5246WADX386 is a miniature toggle switch featuring a 6.35mm bushing and On-On DPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

DPDT contacts

On-On operation

Right angle PCB terminals

Lever: round 10.5mm length

4.7mm pitch terminal spacing

Rating: 4A 30VDC

Panel cut-out: 6.5mm

APEM 5000 series
