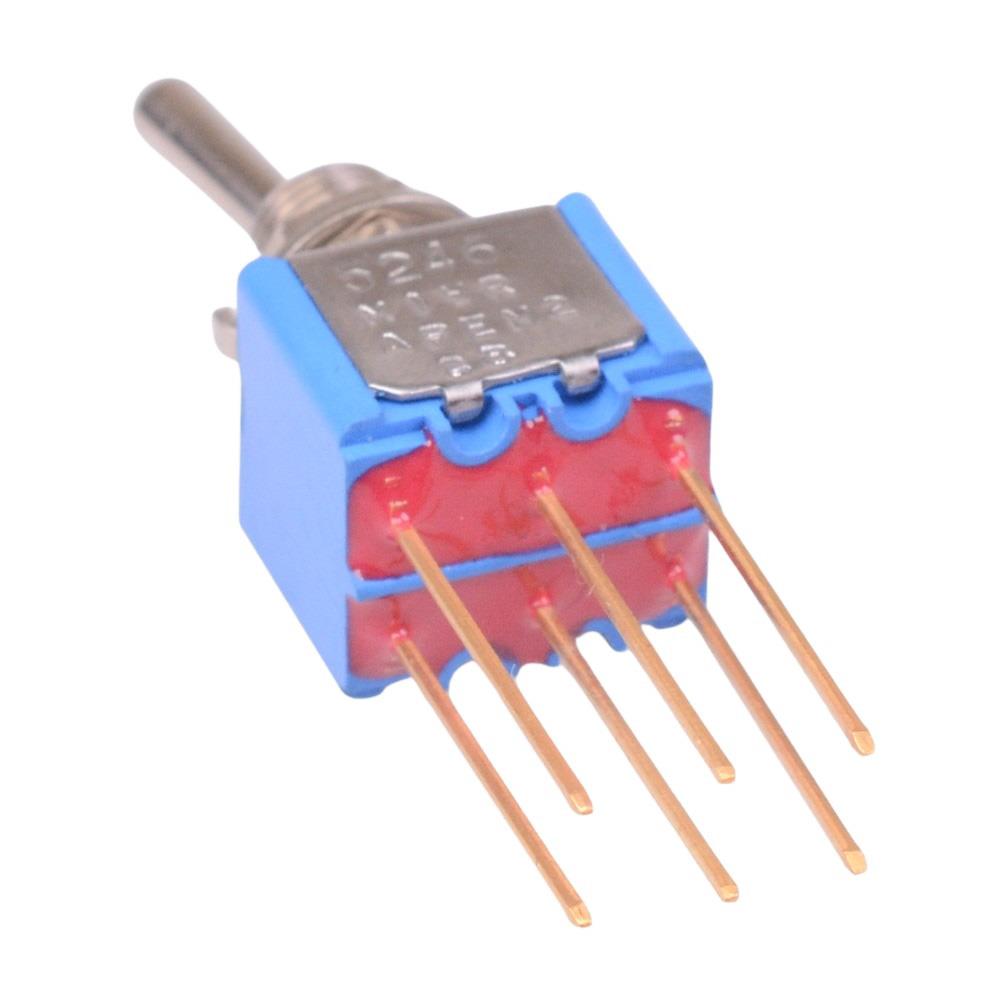

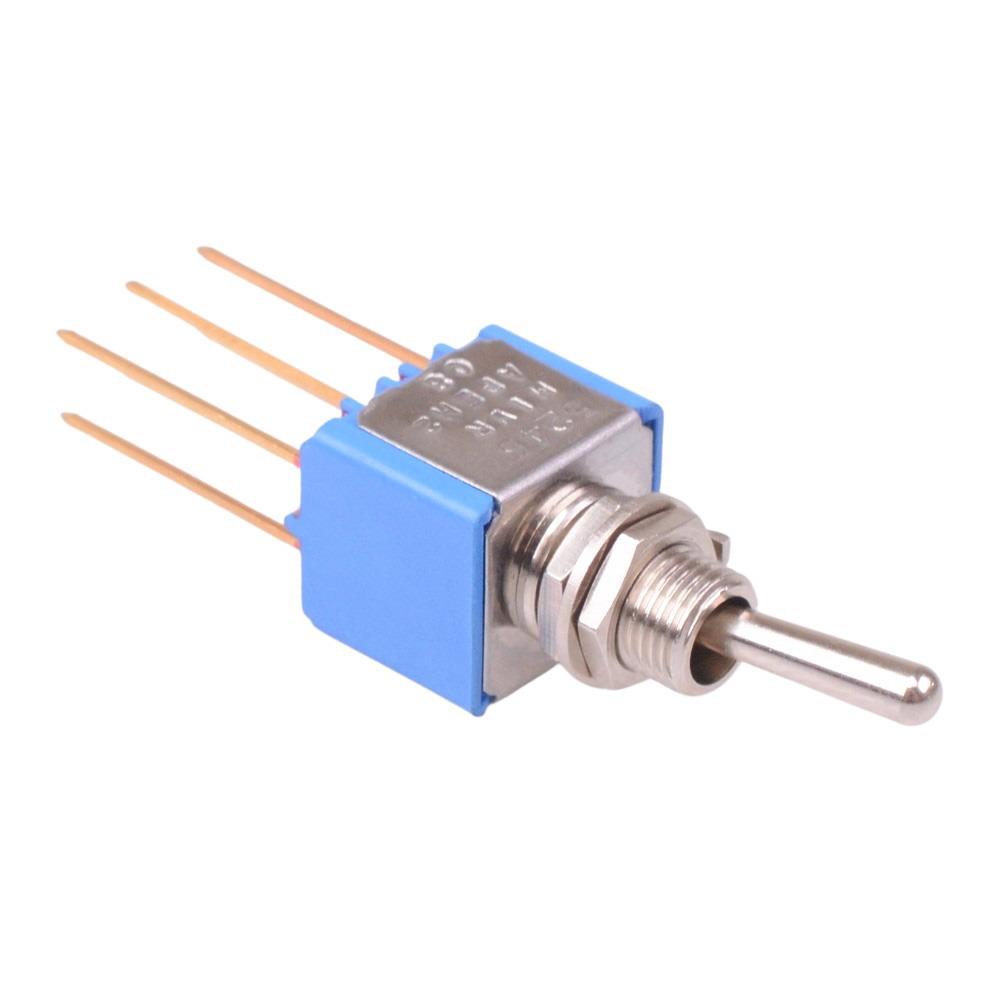

5246MIWRCDB APEM On-On Vertical PCB Miniature Toggle Switch DPDT

The 5246MIWRCDB is a vertical miniature toggle switch featuring On-On DPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and 6.35mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

PCB solder terminals

Contact rating: 4A 30VDC

Gold plated brass contacts

Epoxy sealed terminals

10.5mm round lever

Terminal pitch: 4.75 x 4.7mm

Body dimensions: 11 x 12 x 13.2mm (length x width x height)

UL, CSA, CECC approved

APEM 5000 series
