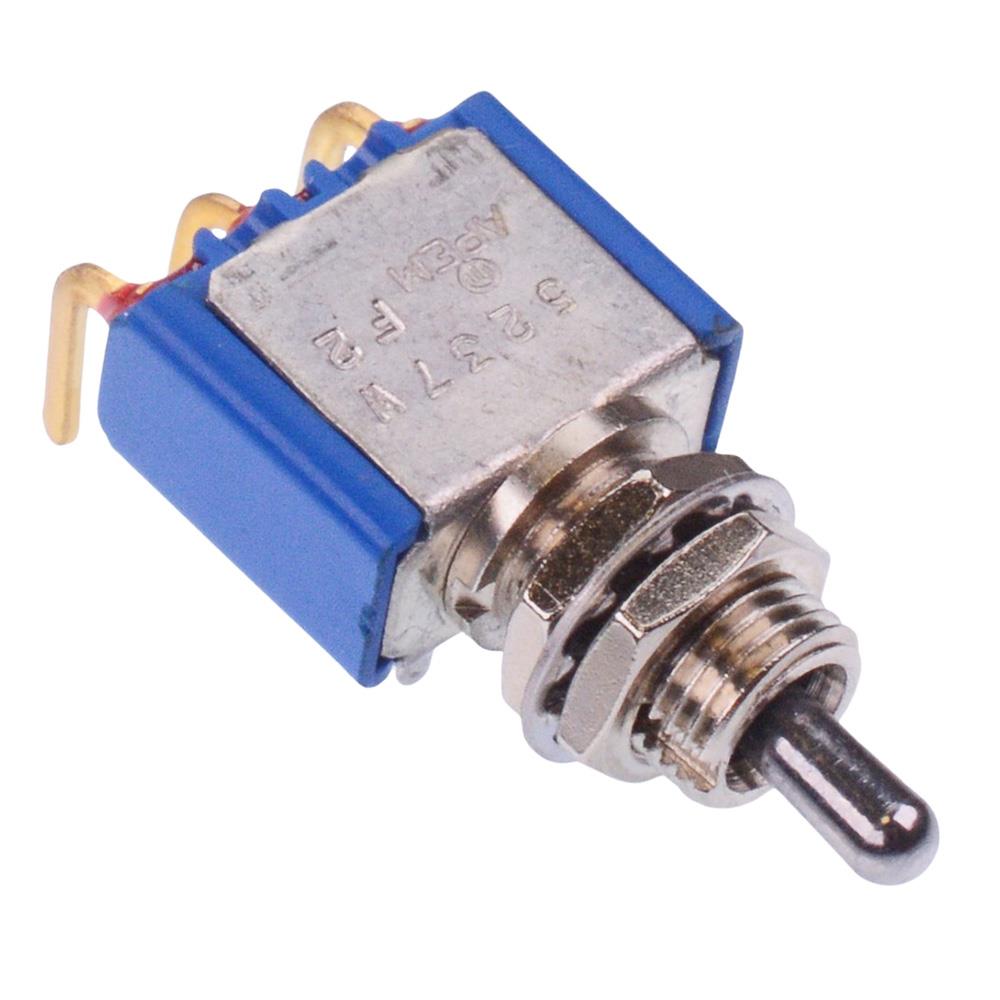

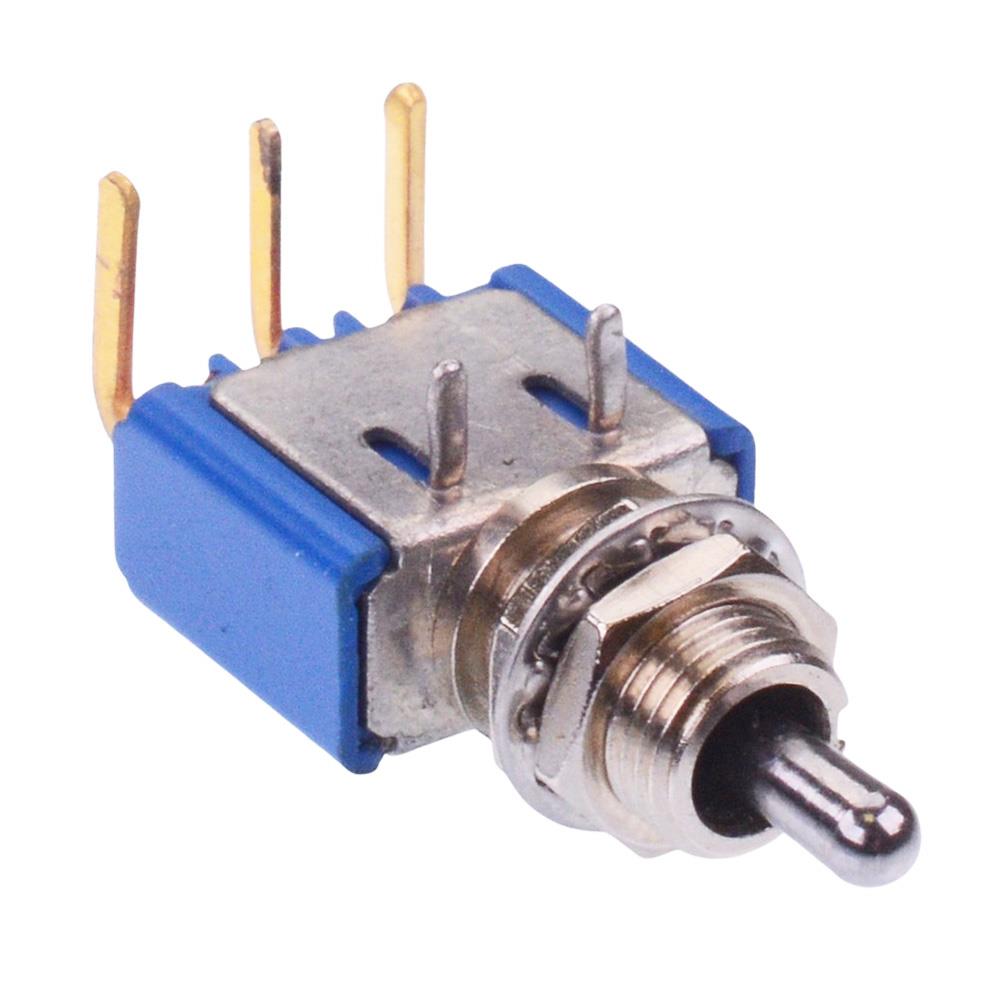

5237WCDBX38616 APEM (On)-Off-(On) Momentary 6.35mm Miniature Toggle Switch SPDT

The 5237WCDBX38616 is a miniature toggle switch featuring a 6.35mm bushing and (On)-Off-(On) momentary SPDT contacts, from the APEM 5000 series of switches. The switches meet UL, CSA, CECC approvals and feature PCB terminals making them suitable for a wide range of panel and PCB mount applications.

SPDT contacts

(On)-Off-(On) momentary operation

Right angle PCB terminals

Lever: round 5.5mm length

4.7mm pitch terminal spacing

Rating: 0.4VA 20VAC/DC

Panel cut-out: 6.5mm

Epoxy sealed terminals

APEM 5000 series
