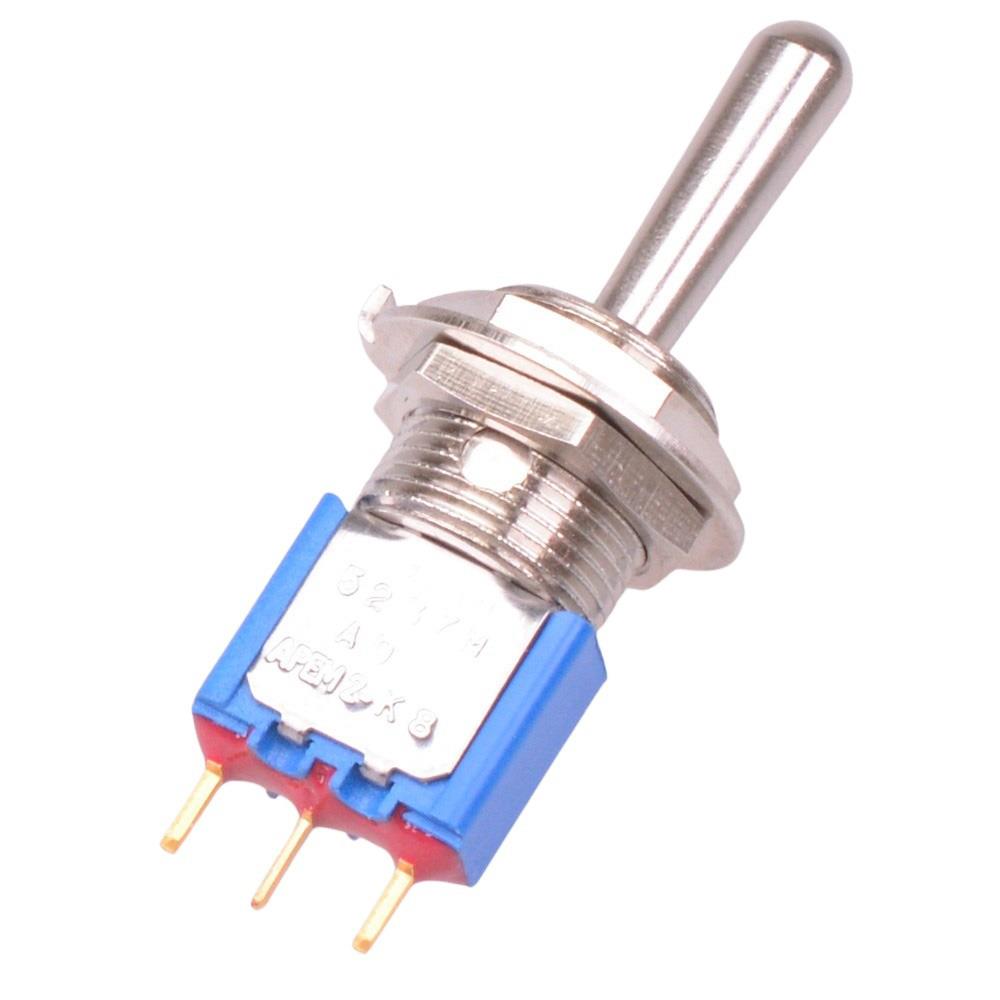

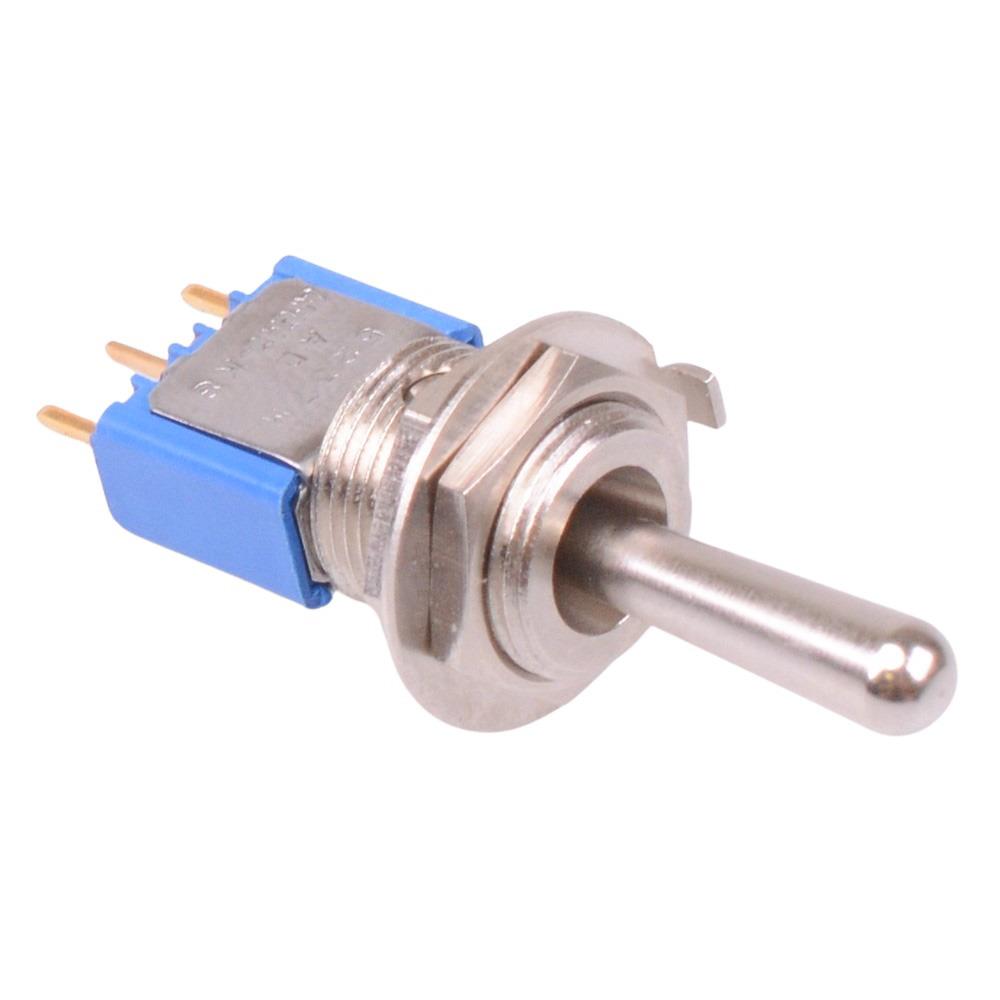

5237MADB APEM (On)-Off-(On) Momentary 12mm Miniature Toggle Switch SPDT

The 5237MADB is a miniature toggle switch featuring (On)-Off-(On) SPDT contacts, from the APEM 5000M series of switches. The switches feature PCB terminals and 11.9mm threaded bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

PC terminals

Contact rating: 4A 30VDC

Panel cut-out: 12.5mm

Dimensions: 44.1 x 7.0 x 13.2mm (height x depth x length)

Panel thickness: 6mm max

Gold plated silver contact material

UL, CSA, CECC approved

APEM 5000M series
