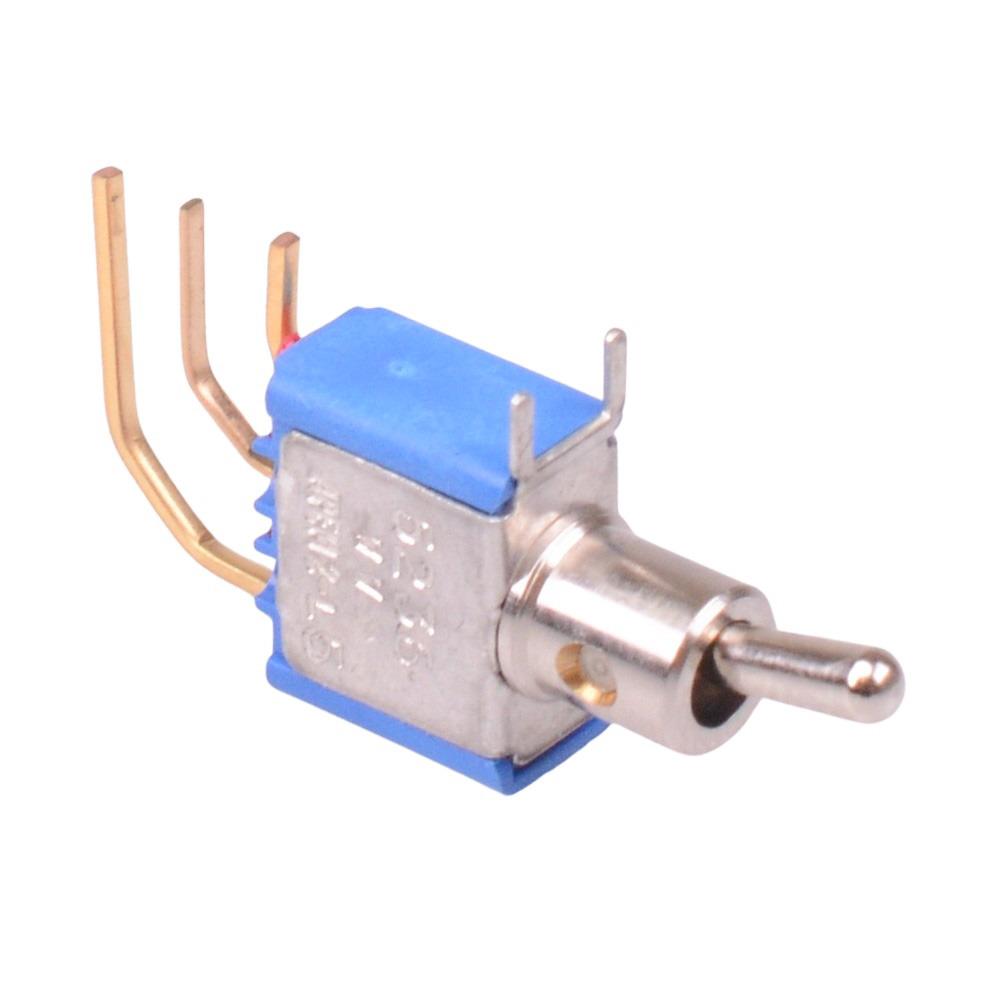

5236WWCDB16X445 APEM On-On Miniature Right Angle PCB Toggle Switch SPDT

The 5236WWCDB16X445 is a right angle miniature toggle switch featuring On-On SPDT contacts, from the APEM 5000 series of switches. The switches feature PCB terminals and plain bushing, making them suitable for a wide range of applications requiring a reliable switch in a compact package.

PCB solder terminals

Contact rating: 4A 30VDC

Gold plated brass contacts

Epoxy sealed terminals

Short 5.5mm lever

Terminal pitch: 3.81mm

Body dimensions: 7.0 x 11.0 x 13.2mm (length x width x height)

UL, CSA, CECC approved

APEM 5000 series
