47pF/0.047nf 5% 100V Ceramic Capacitors (2 Pack)
47pF/0.047nf 5% 100V Ceramic Capacitors (2 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.89
Regular price
Sale price
£0.89
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-221

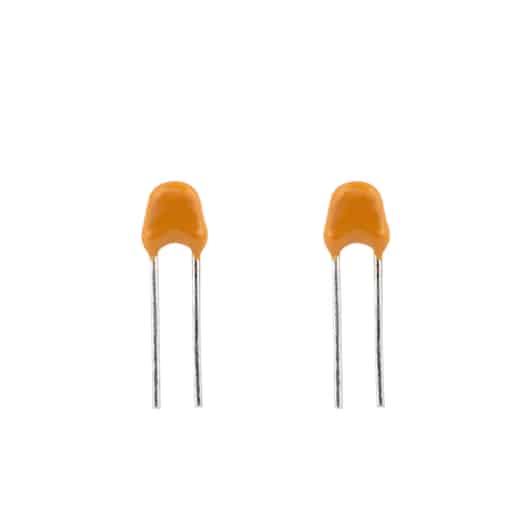

A Miniature size 47pF 100V 0805 size radial ceramic capacitor from the Suntan TS17 series. Suitable for use as blocking, coupling, by-passing capacitors in applications requiring stable performance and predictable property changes. Excellent humidity resistance, Epoxy resin coated
Pitch: 2.54mm.
Tolerance: 5%.
Dielectric NPO
Specifications
| Capacitance | 47pF/0.047nf |
| Dielectric | NPO |
| Tolerance | 5% |
| Maximum Voltage | 100V |
| Dissipation Factor | <0.15% <10nF IR<1000C0MΩ C>10nF R·C>100S |
| Pitch | 2.54mm |
| Operating Temperature | 0±30PPm/c -55℃~+125℃ |
| Capacitor Dimensions | 4.2 x 3.8 x 3mm |
| Layout | Radial leaded |
