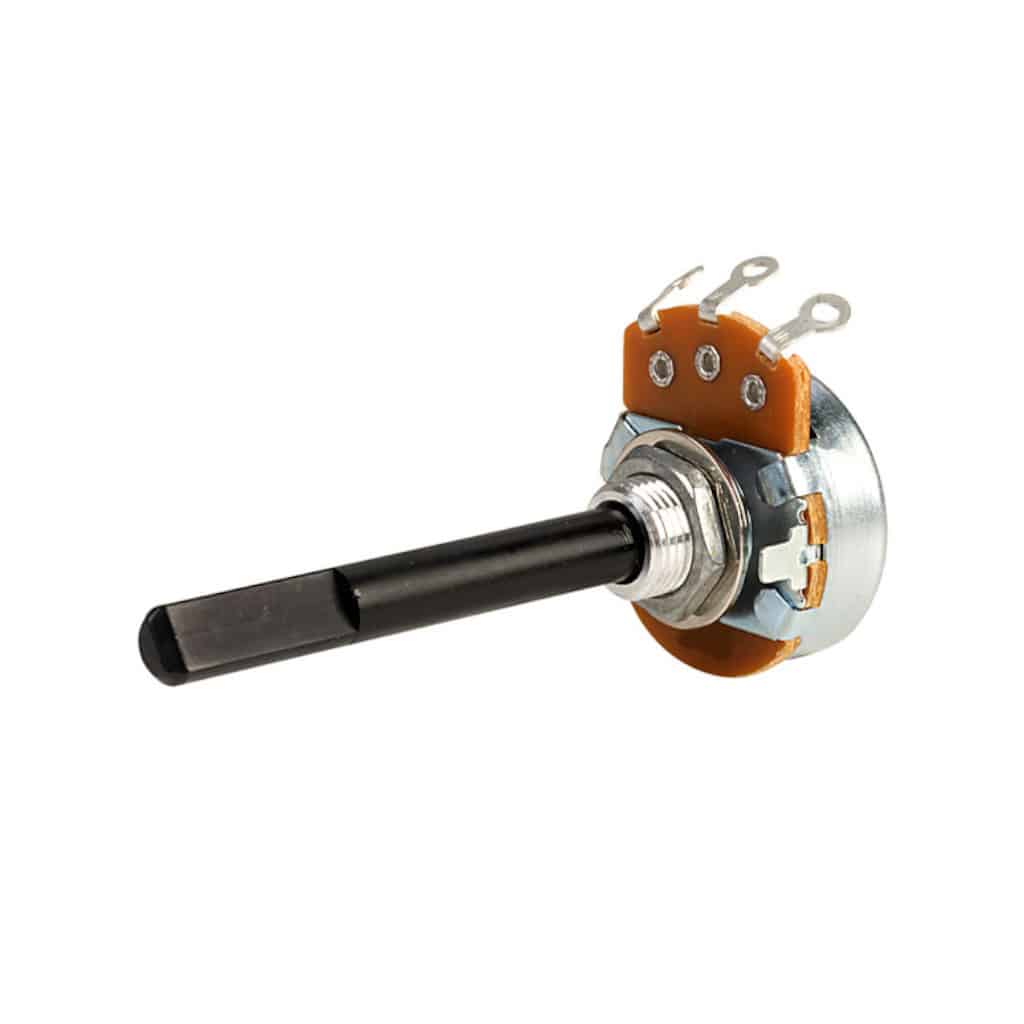

4.7K (4K7) Linear 24mm, Metal Case, Solder Lug Potentiometer
4.7K (4K7) Linear 24mm, Metal Case, Solder Lug Potentiometer
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£2.99
Regular price
Sale price
£2.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 04-165
20% tolerance carbon track single potentiometer from Taiwan Alpha suitable for panel mounting in commercial applications. Ø24mm
Specifications
| Type | Linear |
| Power rating | 0.125W |
| Maximum voltage | 150V |
| Tolerance | 20.00% |
| Rotation | 300° ±5° |
| Pitch | 5mm |
| Shaft Diameter | 6mm |
| Shaft length (including bush) | 50mm |
| Dimensions | 17 x 16.5mm |
| Operating Temperature | –25°C to +70°C |
