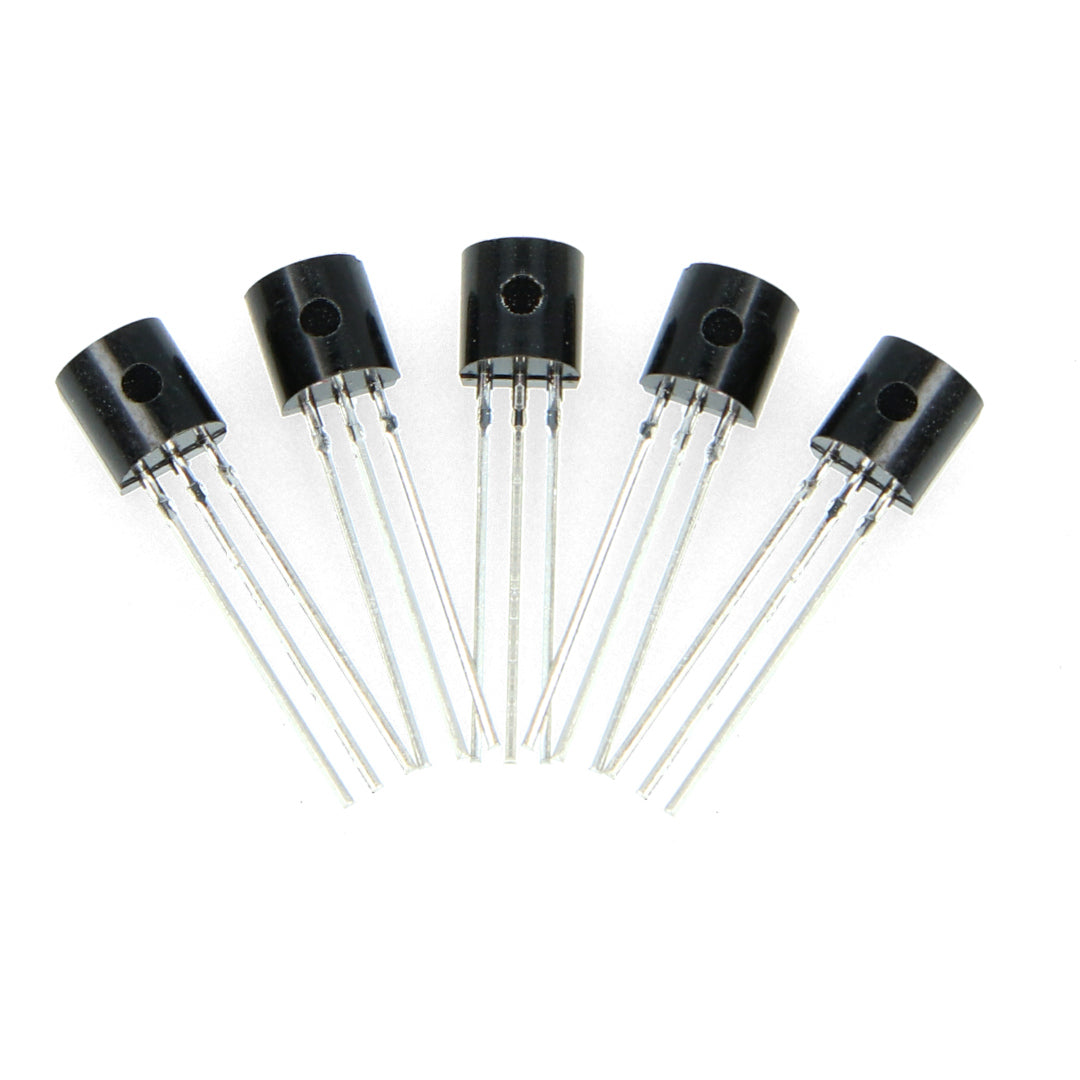

2N5551 NPN Transistor (5 Pack)
2N5551 NPN Transistor (5 Pack)
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£0.99
Regular price
Sale price
£0.99
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 02-115
The 2N5551 is a through hole, NPN general purpose amplifier in TO-92 package. Designed for general purpose high voltage amplifiers and gas discharge display drivers.
Specifications
| Collector Emitter Voltage Max: | 160V |
| Collector Base Voltage Max: | 180v |
| Emitter Base Voltage | 6v |
| Continuous Collector Current: | 600mA |
| Power Dissipation: | 625mW |
| DC Current Gain hFE Min | 80hFE |
| Thermal Resistance, Junction To Case | 83.3°C/W |
| Thermal Resistance, Junction To Ambient | 150°C |
| Transition Frequency | 150MHz |
| Operating Temperature | -55°C to 150°C |
| Pins | 3 |
| Mounting | Through Hole |
| Casing | TO-92 |
