50 Pack 2K 16mm Linear Splined Potentiometer PCB Pot
50 Pack 2K 16mm Linear Splined Potentiometer PCB Pot
Regular price
£39.99
Regular price
Sale price
£39.99
Order Code:
Delivery calculated at checkout.
Quantity
Couldn't load pickup availability
Product Description

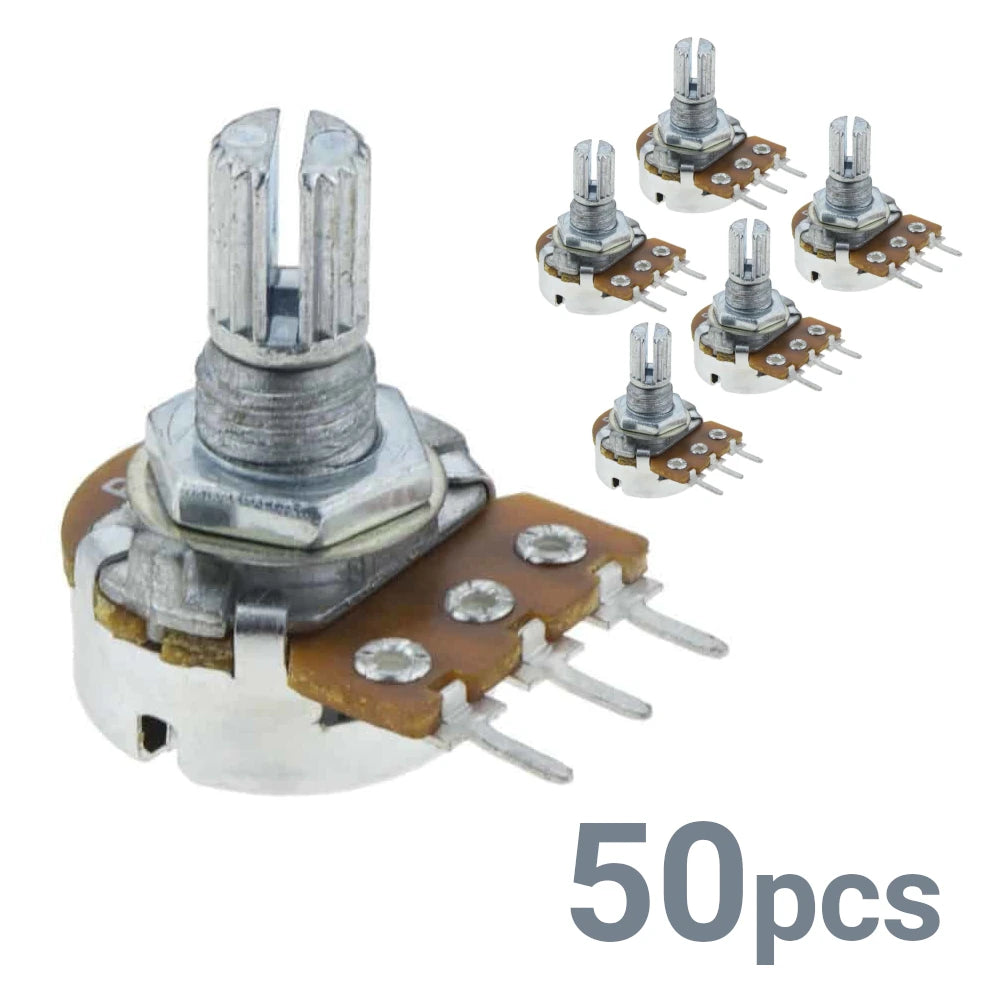

16mm potentiometers with a splined 6mm shaft suitable for PCB mounting.
Specifications
| Type | Linear |
| Tolerance | ±20.00% |
| Diameter | 16mm |
| Shaft Length | 15mm |
| Pitch | 5mm |
| Panel Cut Out | 7mm |
| Mounting | PCB |
| Operating Temperature | -25°C to +70°C |
| Manual Soldering | 300°C @ 3 Seconds |
| Rated Wattage | 0.125W |
| Maximum Voltage | 200VAC |
| Total Rotation | 300° ± 5° |
| Rotation Cycles | 15000 |
