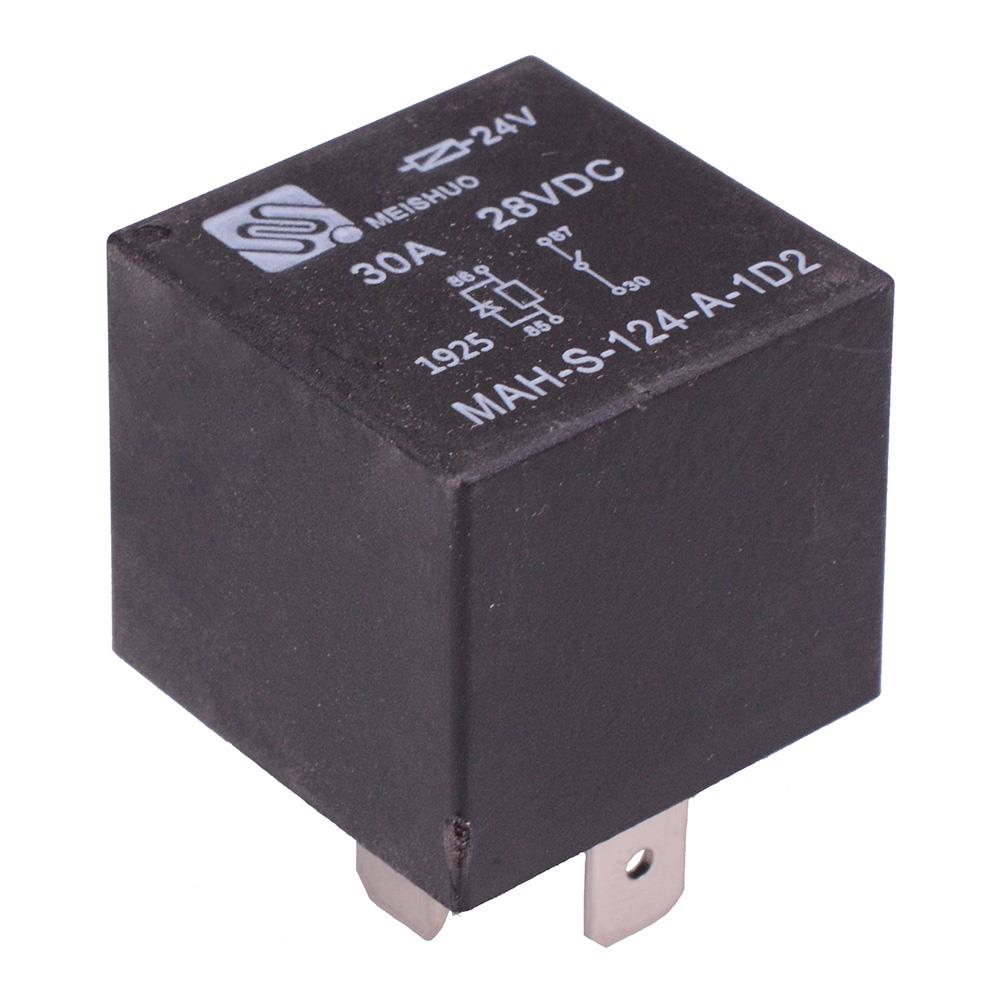

24V SPNO Mini Automotive Relay Diode 40A MAH-S-124-A-1D2

24V mini automotive relay featuring SPNO contacts and diode across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 4 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Bracket: without

Maximum continuous current: 40A

Contact rating: 24VDC 30A

Coil voltage: 24VDC

Coil power: 1.7W

Contacts: SPNO

Terminals: 6.3mm quick connect

Body dimensions: 27.8 x 27.8 x 25.1mm
