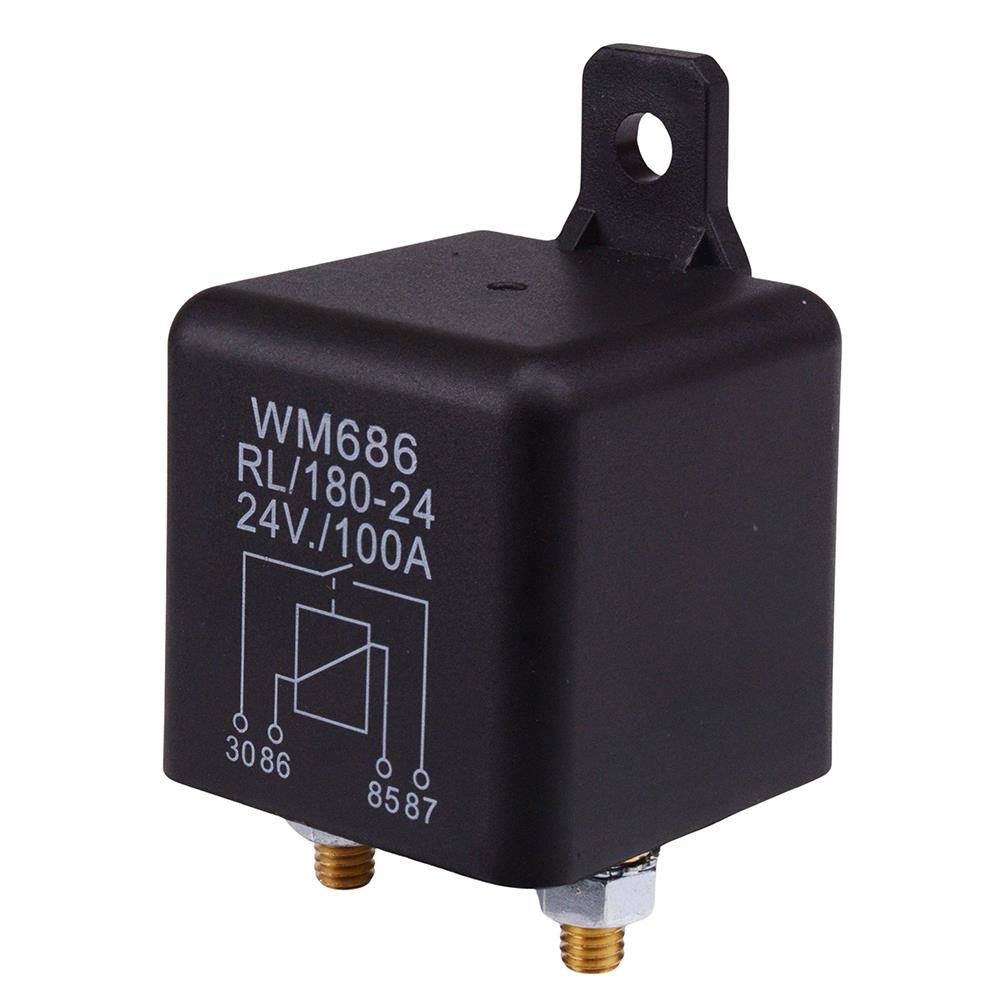

24V Heavy Duty Automotive Relay 100A SPNO

24V high power automotive relay featuring SPNO contacts and plastic mounting bracket. The relay is sealed providing protection from dust and water, suitable for a wide range of automotive applications.

Maximum switching current: 100A

Coil voltage: 24VDC

Coil power: 4.8W

Sealed IP67 construction

SPNO contacts

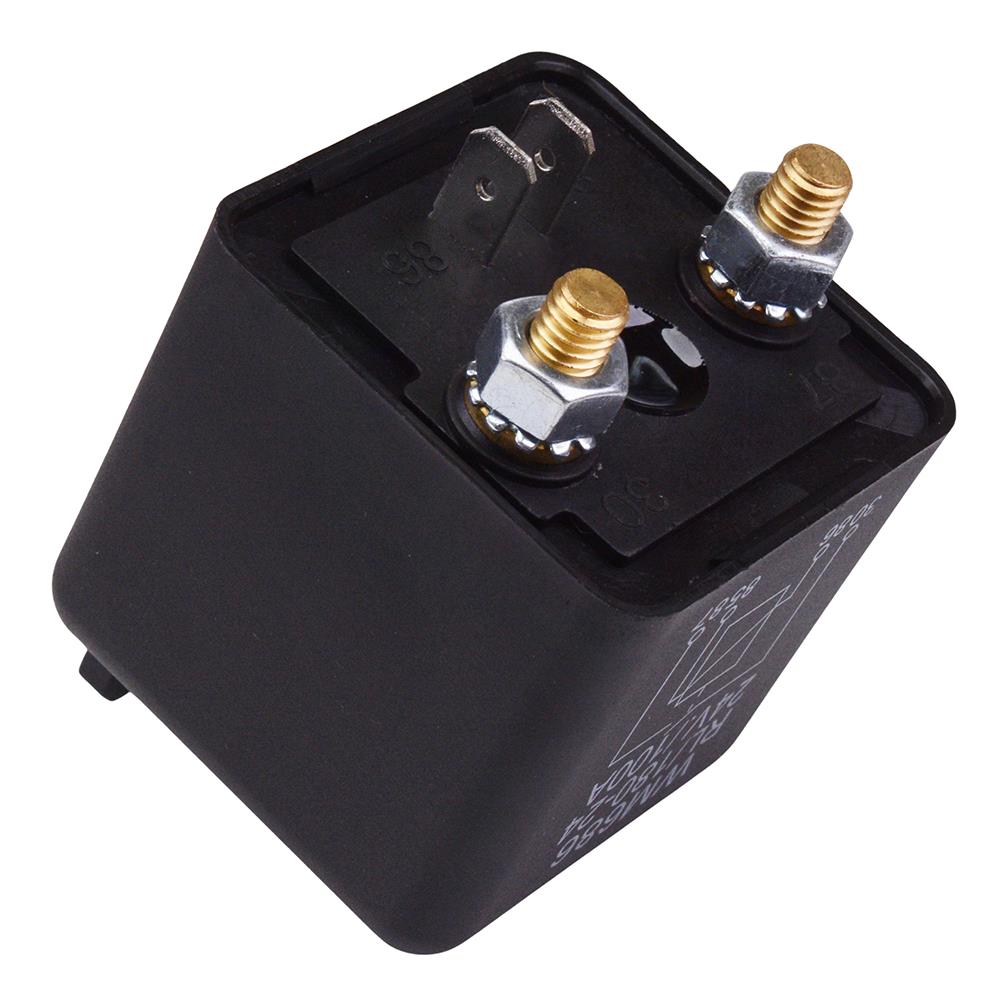

Terminals: 6.3mm quick connector and M6 stud

Excellent shock and vibration resistance

Wide temperature range

Body dimensions: 46 x 46 x 44mm (length x width x height)
