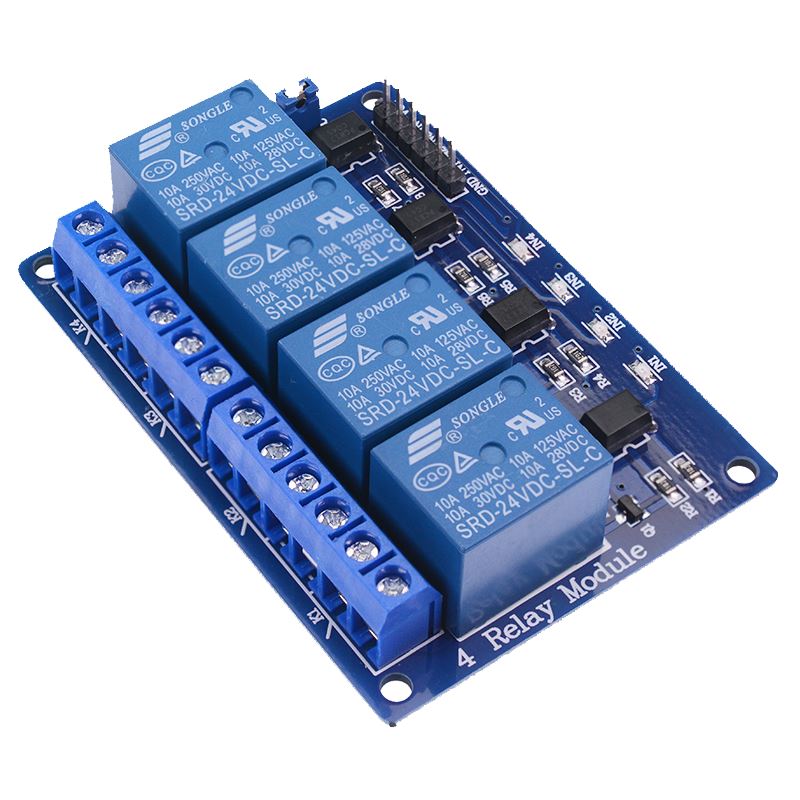

24V 4-Channel Relay Board Module

24V 4-Channel Relay Board Module

£4.41
£3.88 £4.41
Sale Sold out

Order Code: 483195

Delivery calculated at checkout.
Available Online Only

184 in stock
View full details

Product Description

Active low relay board with 24V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.

  • 4 Channel
  • Maximum switching voltage: 250VAC / 30VDC
  • Maximum switching current: 10A
  • Module operating voltage: 24V
  • Each relay features an LED indicator
  • Dimensions: 76 x 56 x 18mm (Length x Width x Height)
