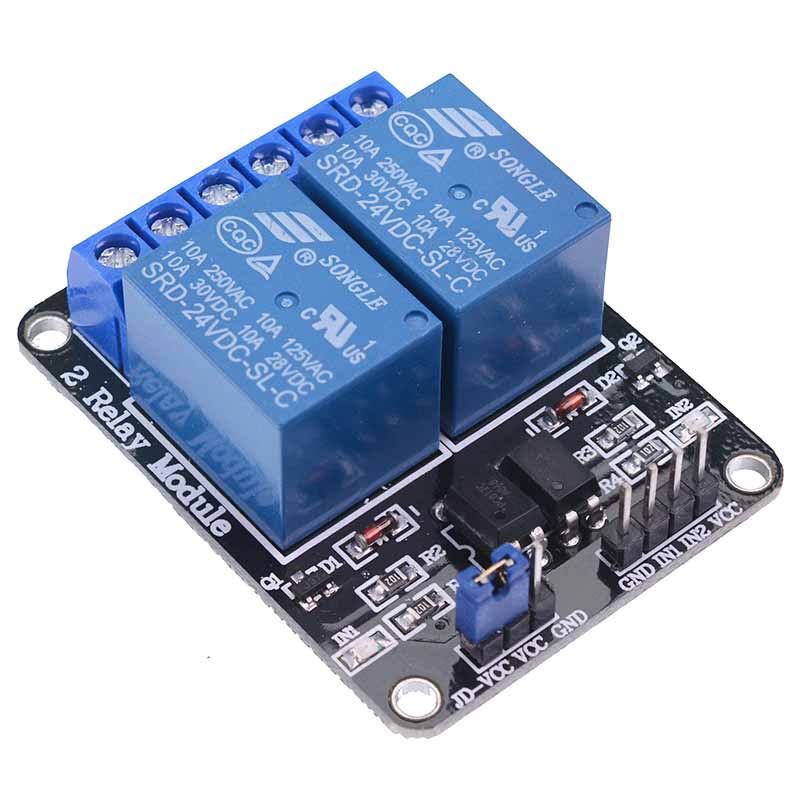

24V 2-Channel Relay Board Module

Active low relay board with 24V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. Suitable for 5V and 3.3V devices, these boards are perfect for Raspberry Pi, Arduino, PIC and various other microcontrollers.

2 Channel

Maximum switching voltage: 250VAC / 30VDC

Maximum switching current: 10A

Module operating voltage: 24V

Each relay features an LED indicator

Dimensions: 51 x 39 x 18mm (Length x Width x Height)
