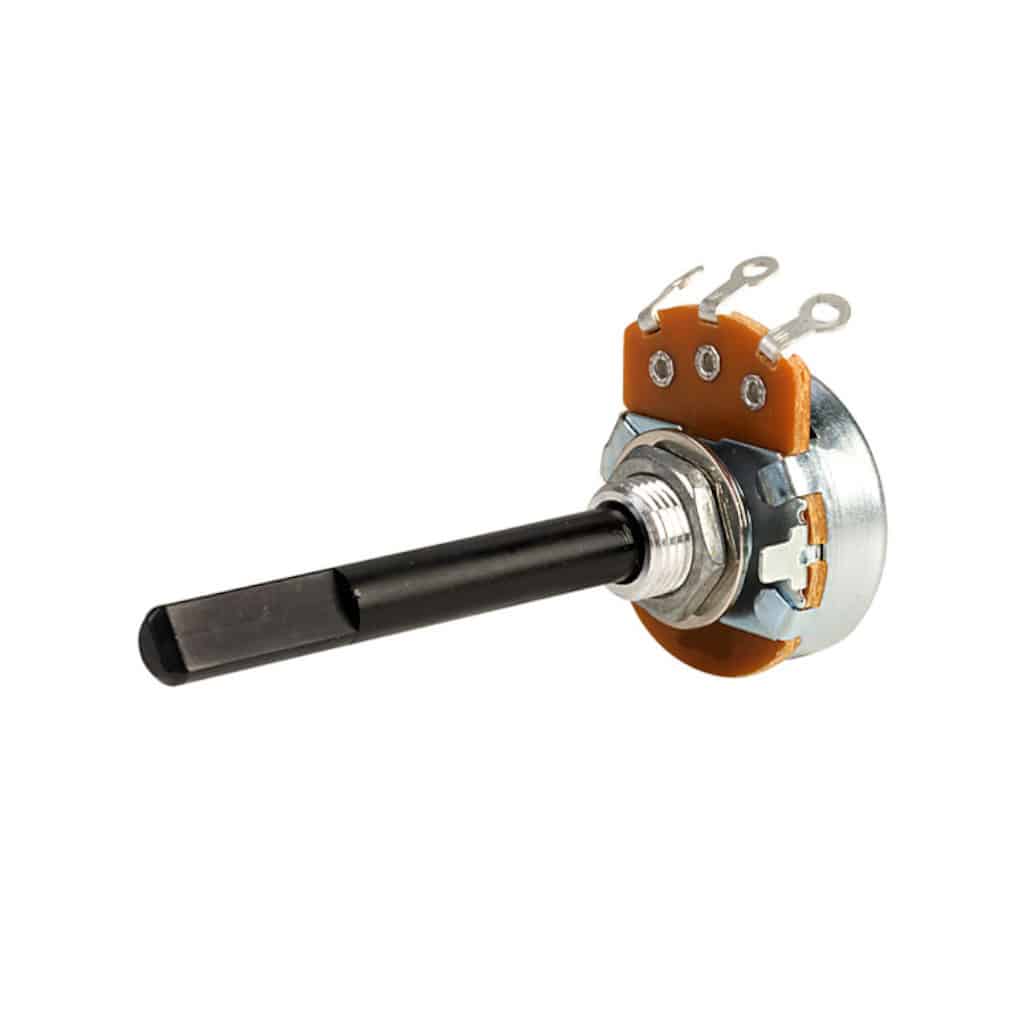

1M Linear 24mm, Metal Case, Solder Lug Potentiometer

1M Linear 24mm, Metal Case, Solder Lug Potentiometer

Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop

Regular price £2.99
Regular price Sale price £2.99
Sale Sold out
Shipping calculated at checkout.
Contact us for availibility
Order Code: 04-172

20% tolerance carbon track single potentiometer from Taiwan Alpha suitable for panel mounting in commercial applications. Ø24mm

Specifications
TypeLinear
Power rating0.125W
Maximum voltage150V
Tolerance20.00%
Rotation300° ±5°
Pitch5mm
Shaft Diameter6mm
Shaft length (including bush)50mm
Dimensions17 x 16.5mm
Operating Temperature–25°C to +70°C
