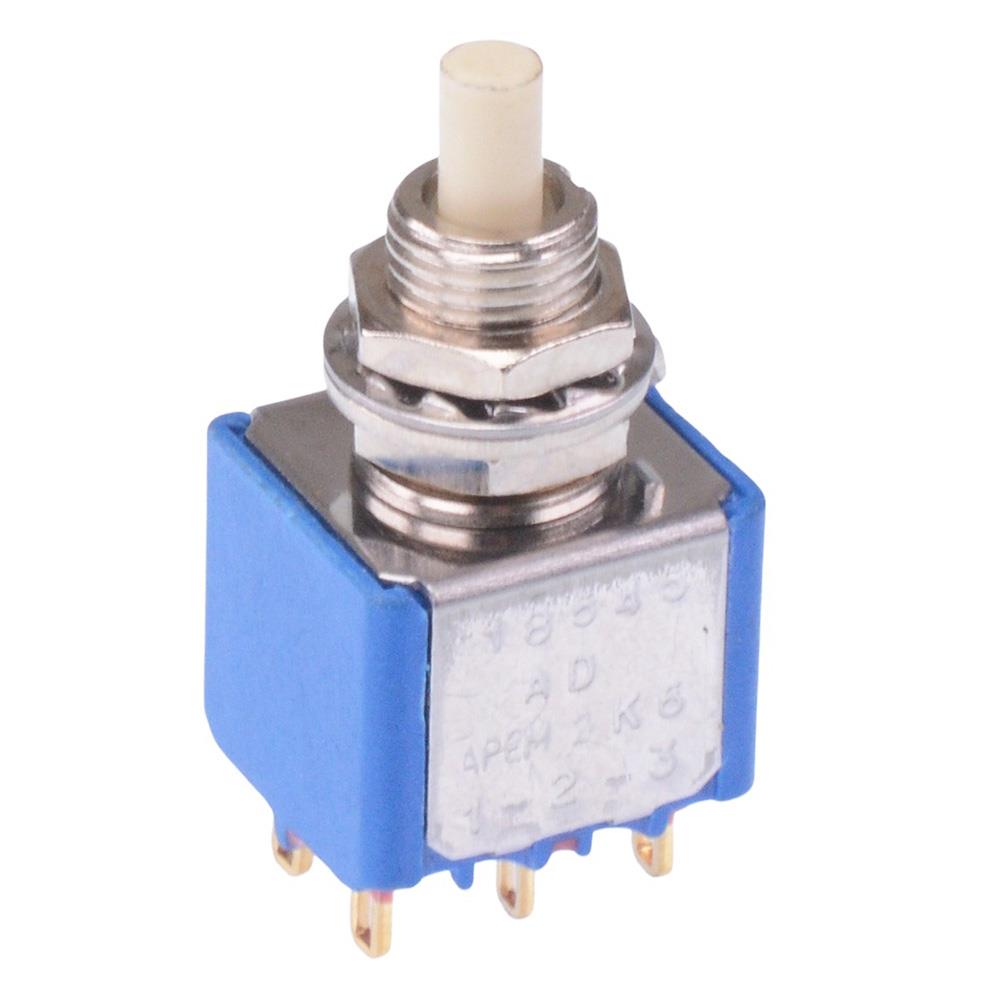

18545AD5 On-(On) Momentary Push Button Switch DPDT 1A 30VDC

The 18545AD5 is a snap-action momentary push button switch featuring a positive tactile feedback when pressed, suitable for panel mount applications.

On-(On) momentary operation

DPDT contacts

Rating: 1A 30VDC

6.35mm threaded bushing

Solder terminals

6.5mm panel cut-out

Gold plated silver contacts

Plunger: 3.1 x 6.3mm (diameter x height)

Terminal pitch: 4.7mm
