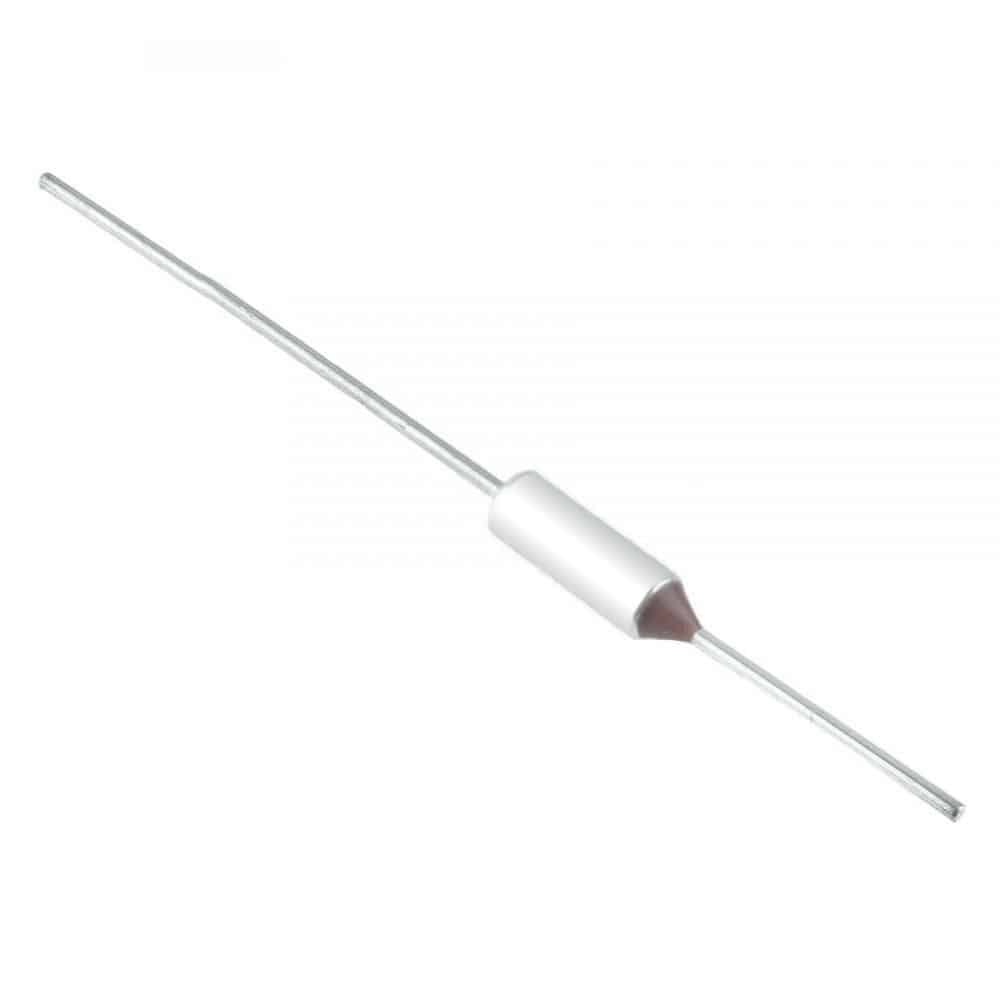

182°C Thermal Fuse
182°C Thermal Fuse
Please Note: This product can only be bought instore and not online, we recommend contacting us for availability before making a special visit to our shop
Regular price
£1.79
Regular price
Sale price
£1.79
Unit price
per
Shipping calculated at checkout.
Contact us for availabilityOrder Code: 14-070
Thermal fuse provides protection for your electrical appliances by interrupting the circuit if the operating temperature is exceeded. The fuse has rigid connections and is suitable for surface or panel mounting applications.
Specifications
| Voltage | 250V |
| Current | 10A |
| Contact Resistance | ≤28mΩ |
| Insulation Resistance | >2MΩ |
| Leakage Current | ≥0.2mA |
| Dielectric Strength | 1500VAC @ 1 Min |
| Contacts | Normally Closed |
| Length | 66.5mm |
| Body Diameter | 4.2mm |
| Body Length | 11mm |
| Terminal Type | Axial |
