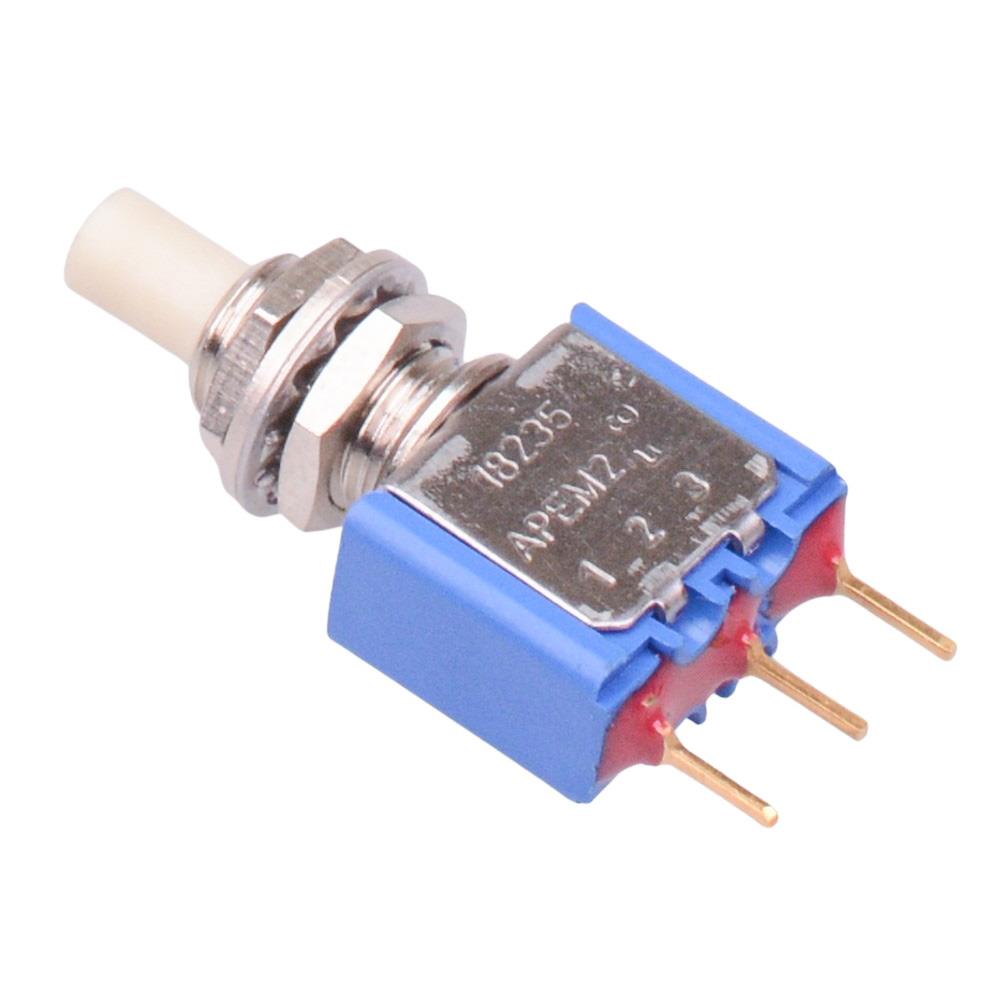

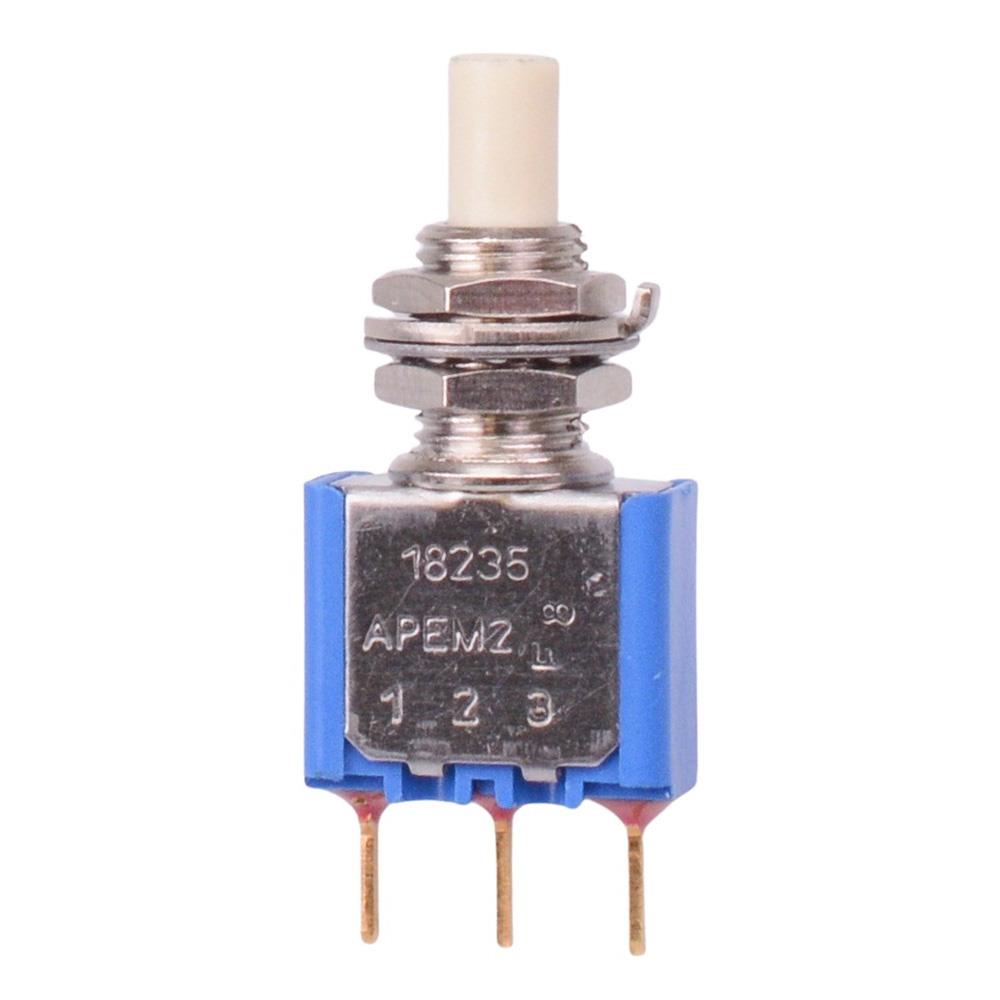

18235CD On-(On) Momentary Panel Mount Push Button Switch SPDT 0.1A 30VDC

The 18235CD is a snap-action momentary push button switch, featuring a positive tactile feedback when pressed and suitable for panel mount applications.

On-(On) momentary operation

SPDT contacts

Rating: 0.1A 30VDC

Panel cut-out: 6.5mm

Solder terminals

Gold plated brass contacts

2.5mm max panel thickness

Terminal pitch: 4.7mm

Dimensions: 31.45 x 13.2 x 7.0mm (height x length x width)
