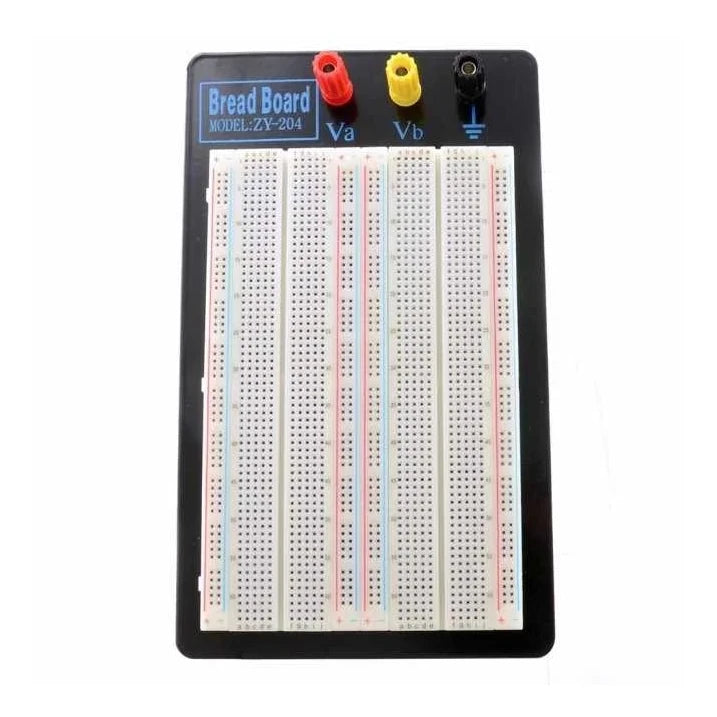

1660 Hole Breadboard ZY-204 Test Bench

• Spacious Design: Offers a massive 1660 tie-points comprising two terminal strips (1260 tie-points) and four distribution strips (400 tie-points).
• Durability Ensured: Comes with a sturdy black aluminium backing plate, ensuring longevity and resistance against wear and tear.
• Hassle-Free Assembly: Accepts a wide array of wire sizes between 20 to 29 AWG. Perfectly designed for through-hole components, supporting up to #22 wire for seamless circuit building and modifications.
• Effortless Adjustments: Redesign, modify, or dismantle your creations with utmost ease, courtesy of its solderless design.
• Enhanced Accessibility: Thoughtfully labelled rows and columns to boost your prototyping efficiency, further complimented by an adhesive backing and dual mounting holes for modular scalability.
• Eco-conscious Design: Meticulously crafted to be recyclable and environmentally friendly, promoting responsible electronics.
• All-Inclusive Package: Every ZY-204 breadboard comes packaged in a convenient blister card, ensuring it reaches you in impeccable condition.

Specifications of 1660 Hole Breadboard ZY-204:

• Dimensions: 16.6 cm × 10.8 cm
• Weight: A modest 400g, making it both portable and robust.
• Components: Comes equipped with matching jumper wires (0.8mm diameter) and three binding posts for varied applications.
• Materials: High-quality ABS plastic, with phosphor bronze nickel-plated spring clips ensuring optimal conductivity.

Ideal For:

• Electronic circuit assembly and debugging.
• Educational platforms for circuitry and electronics training.
• Advanced robotics projects and experimental applications.
