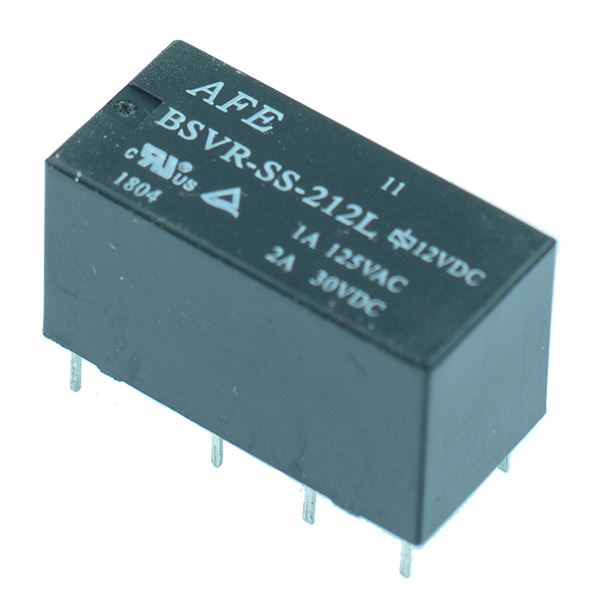

12V Subminiature PCB Relay DPDT 2A

12V subminiature relay housed in a sealed compact package suitable for mounting to PCBs. The relay features DPDT contacts and 2A current rating, making it suitable for a wide range of applications with high density PCBs including household appliances.

Coil voltage: 12V

Contact configuration: DPDT

Contact capacity: 1A 125VAC, 2A 30VDC

Maximum current: 2A

Maximum voltage: 125VAC, 30VDC

Dimensions: 20.1 x 10 x 12mm (Length x Width x Height)
