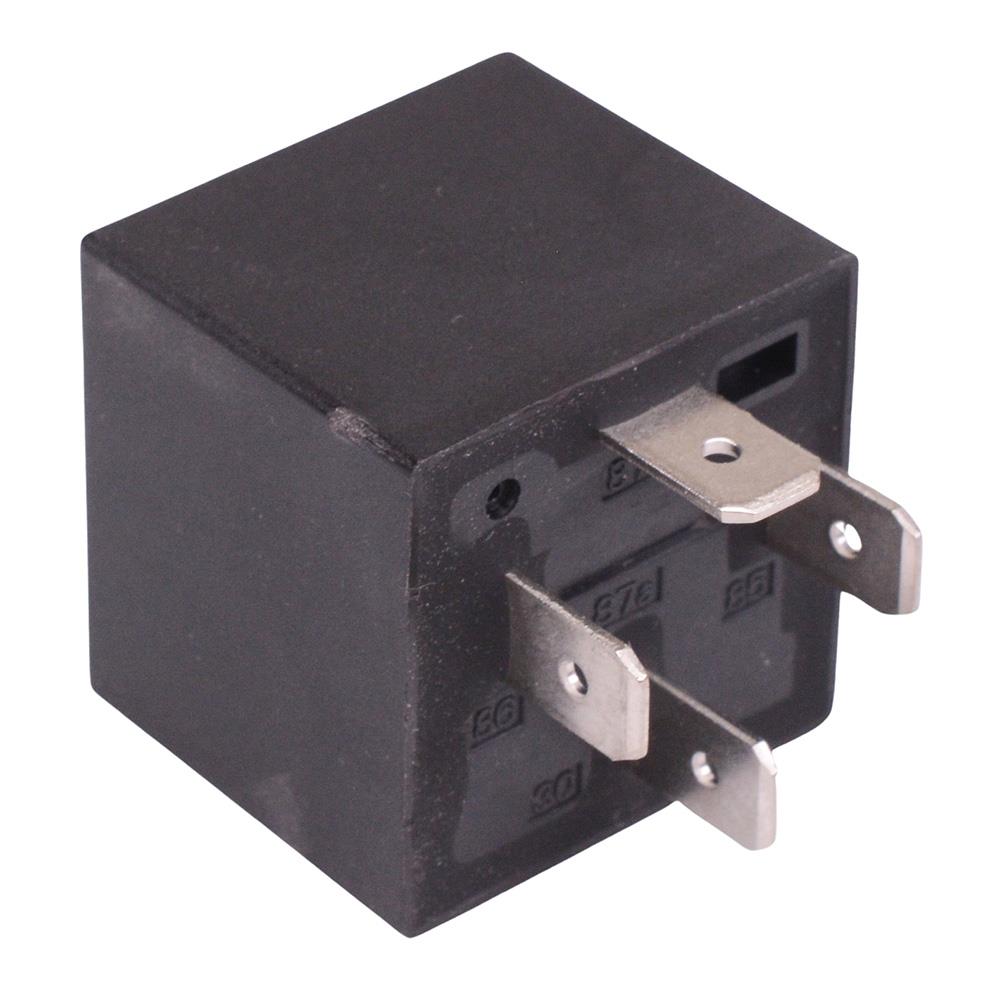

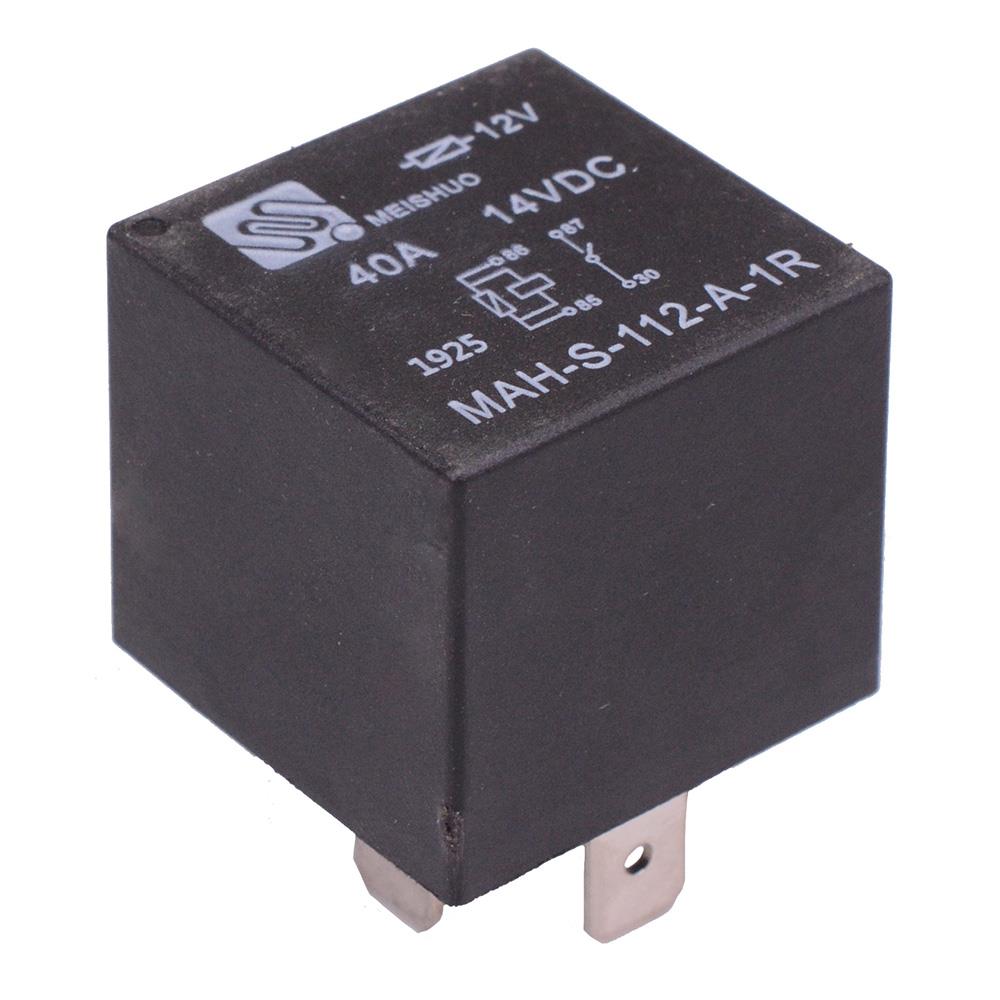

12V SPNO Mini Automotive Relay Resistor 40A MAH-S-112-A-1R

12V mini automotive relay featuring SPNO contacts and resistor across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 4 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Bracket: without

Maximum continuous current: 40A

Contact rating: 14VDC 40A

Coil voltage: 12VDC

Coil power: 1.7W

Contacts: SPNO

Terminals: 6.3mm quick connect

Body dimensions: 27.8 x 27.8 x 25.1mm
