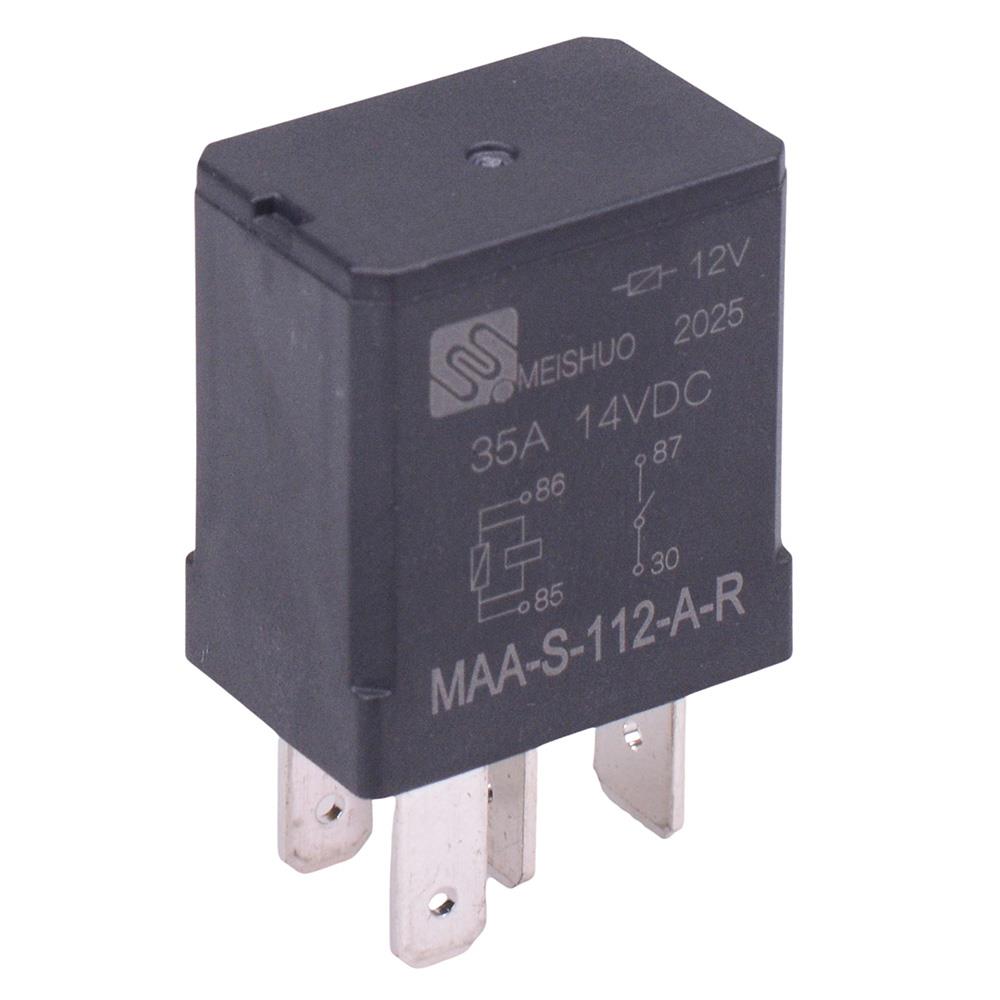

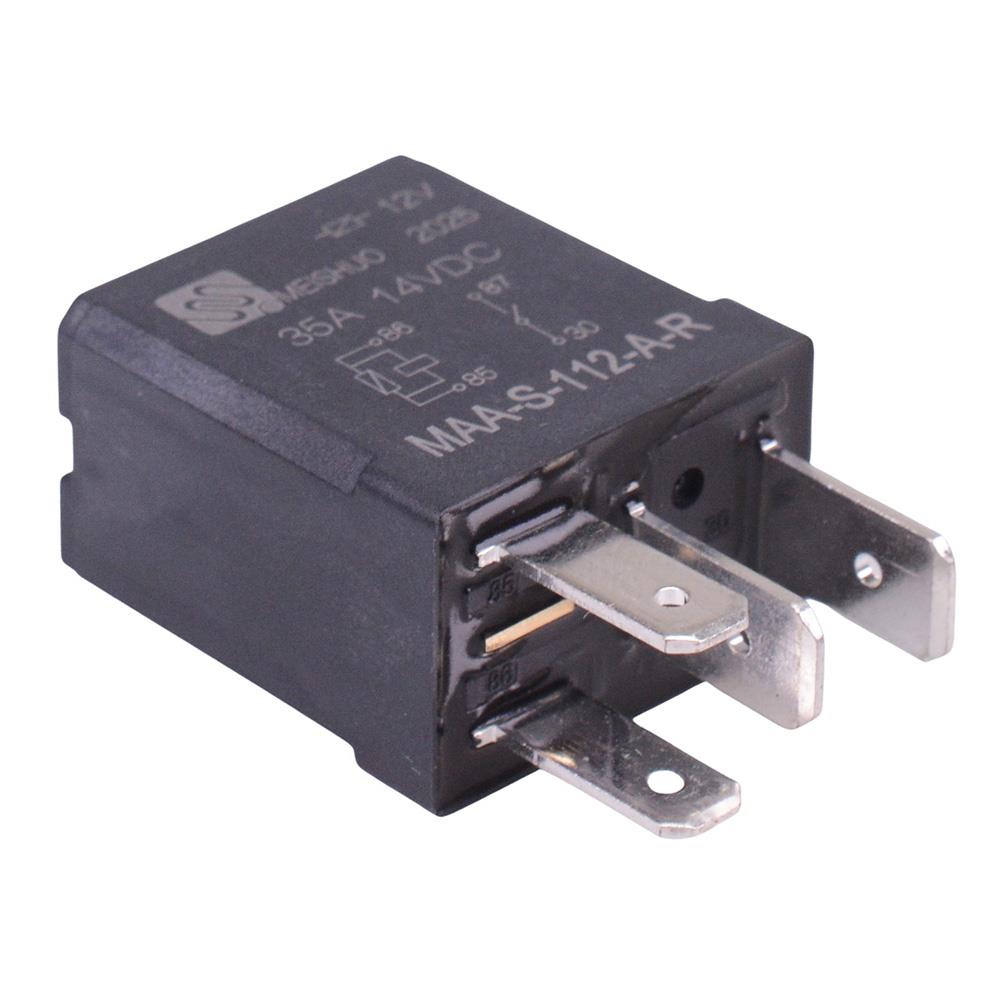

12V SPNO Micro Automotive Relay Resistor 35A MAA-S-112-A-R

12V micro automotive relay featuring SPNO contacts and resistor across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 4 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Maximum continuous current: 35A

Contact rating: 14VDC 35A

Coil voltage: 12VDC

Coil power: 1.6W

Contacts: SPNO

Terminals: 6.3mm quick connect

Body dimensions: 23.3 x 15 x 25mm
