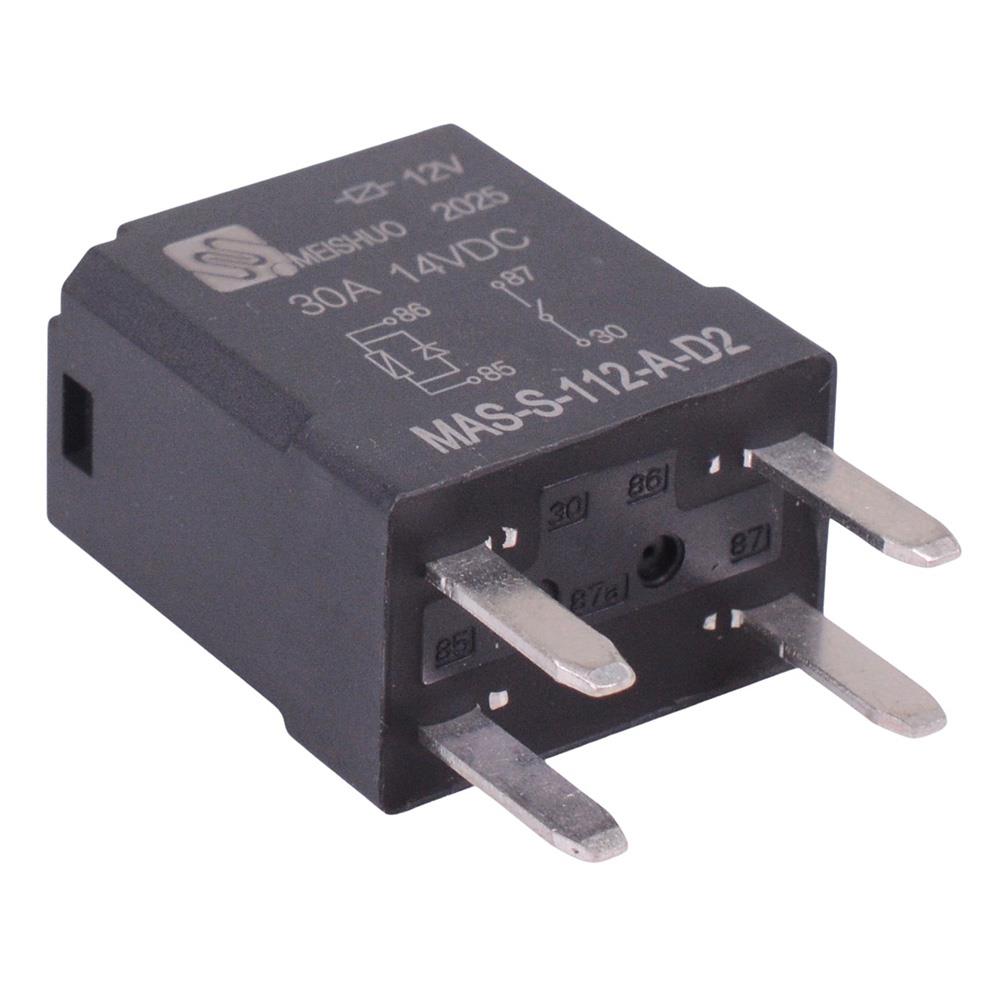

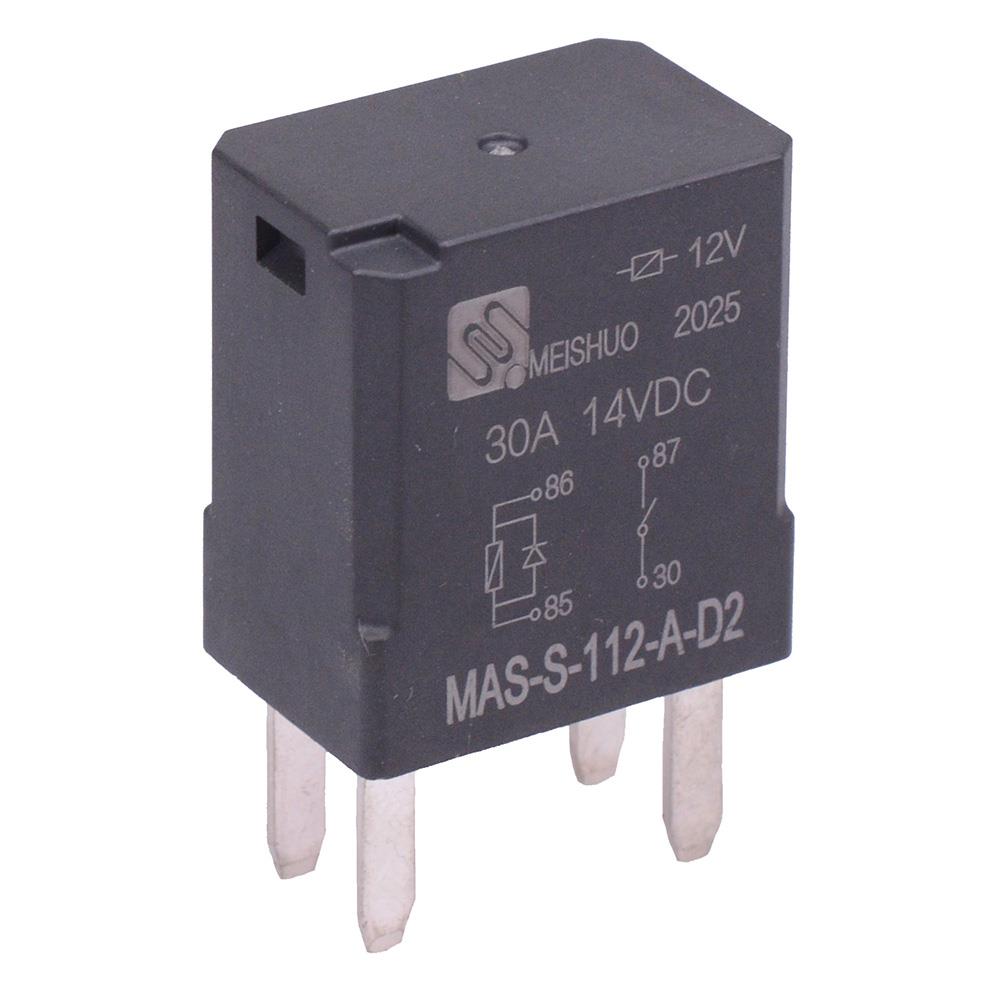

12V SPNO Micro Automotive Relay Diode MAS-S-112-A-D2

Micro automotive relay featuring SPNO contacts and 12V coil voltage with a diode protecting against voltage spikes. The relay features a sealed construction and PCB terminals making it suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Maximum continuous current: 30A

Maximum switching voltage: 28VDC

Coil voltage: 12VDC

Coil power: 1.5W

Contacts: SPNO

Terminals: PCB

Body dimensions: 22.5 x 15 x 25mm (L x W x H)
