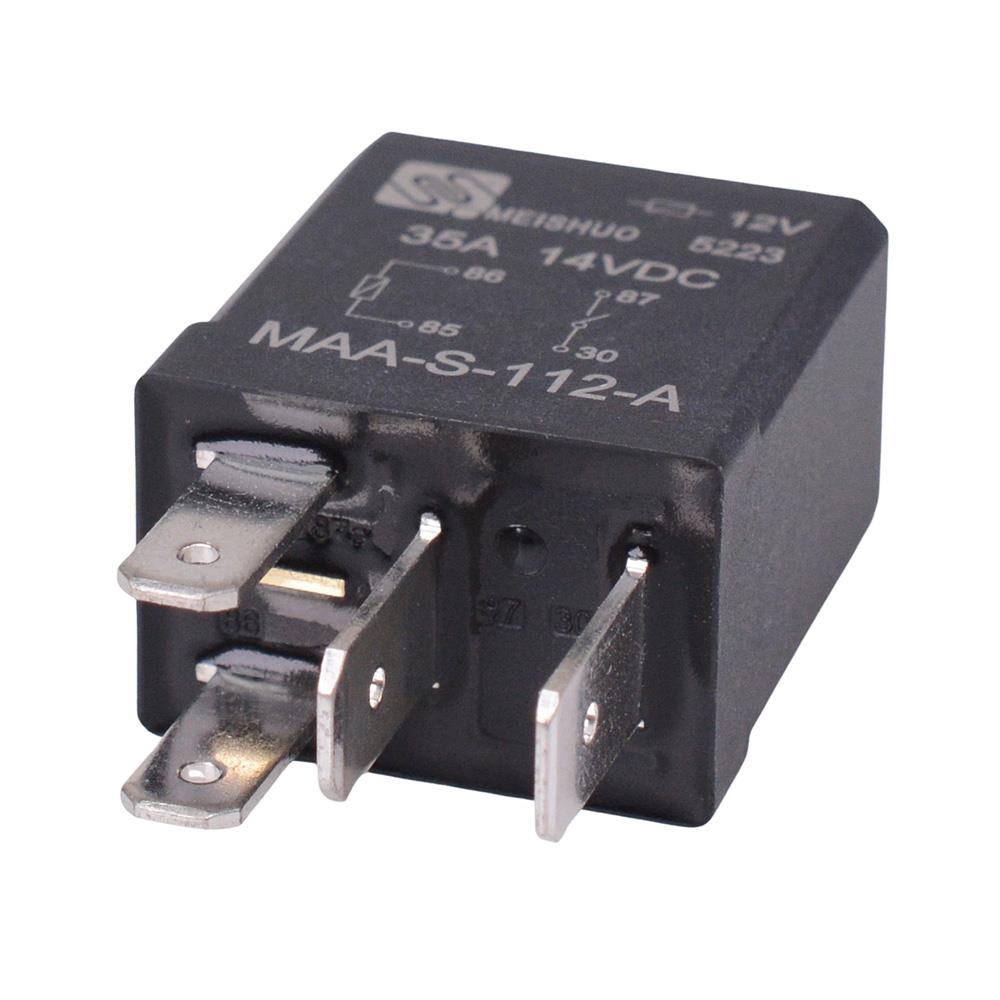

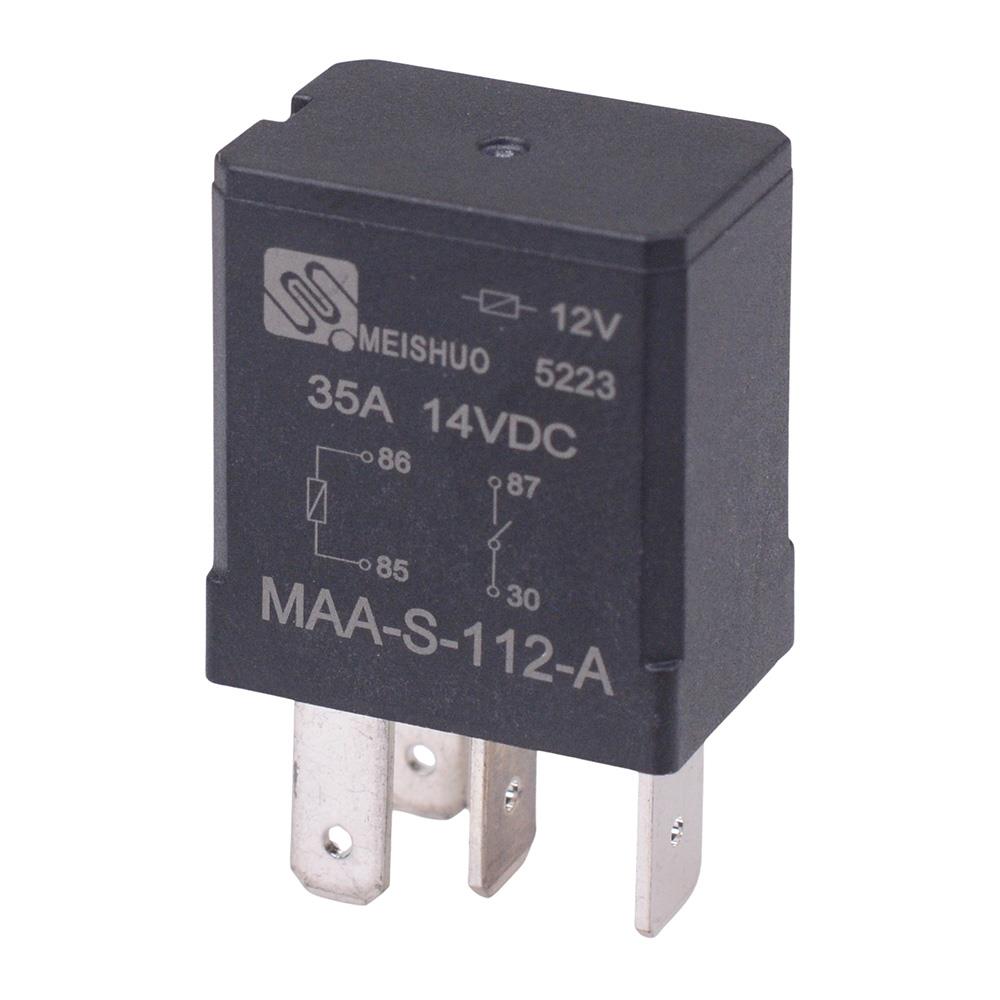

12V SPNO Micro Automotive Relay 35A MAA-S-112-A

12V SPNO Micro Automotive Relay 35A MAA-S-112-A

£1.92
£1.69 £1.92
Sale Sold out

Order Code: 552334

Delivery calculated at checkout.
Available Online Only

Out of stock
View full details

Product Description

12V micro automotive relay featuring SPNO contacts and 35A continuous current rating. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 4 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

  • Excellent shock and vibration resistance
  • Wide temperature range
  • Maximum continuous current: 35A
  • Contact rating: 35A 14VDC
  • Coil voltage: 12VDC
  • Coil power: 1.6W
  • Contacts: SPNO
  • Terminals: 6.3mm quick connect
  • Body dimensions: 23.3 x 15 x 25mm
