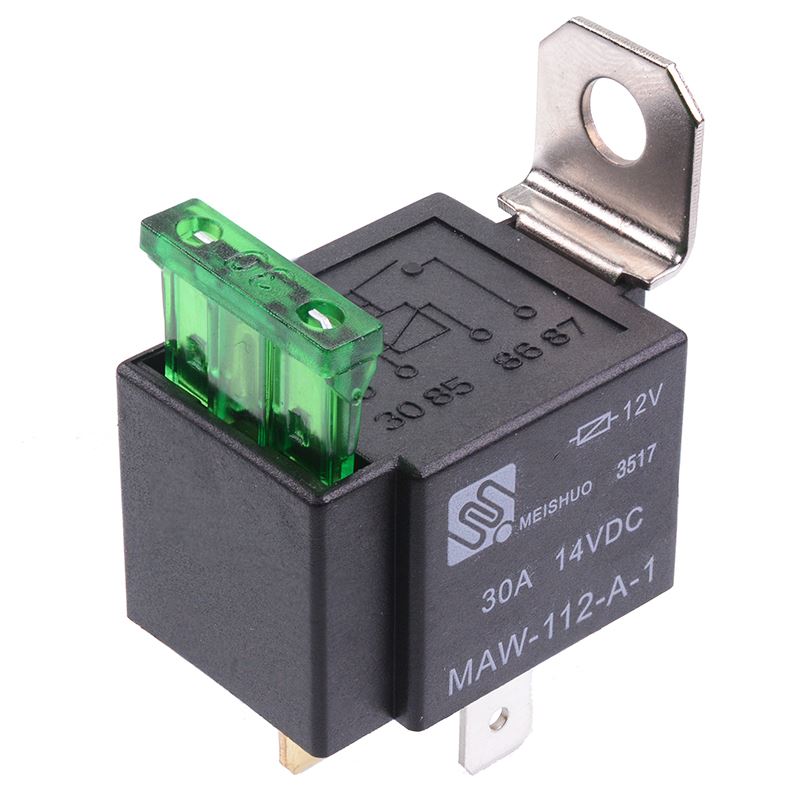

12V SPNO Automotive Fused Relay Metal Bracket 30A MAW-112-A-1

12V automotive relay featuring a 30A fuse and SPNO contacts. The relay features a detachable metal mounting bracket and quick connect 6.3mm terminals compatible with most 4 pin sockets. The relays are suited for a wide range of 12V automotive applications requiring fused protection.

Detachable metal bracket

Includes 30A blade fuse

Contact Rating: 30A 14VDC

Coil voltage: 12VDC

Maximum continuous current: 30A

Maximum switching voltage: 30VDC

Coil power: 1.8W

Contacts: SPNO

Excellent shock and vibration resistance

Wide temperature range

6.3mm quick connect terminals

Body dimensions: 34.6 x 25.2 x 21mm
