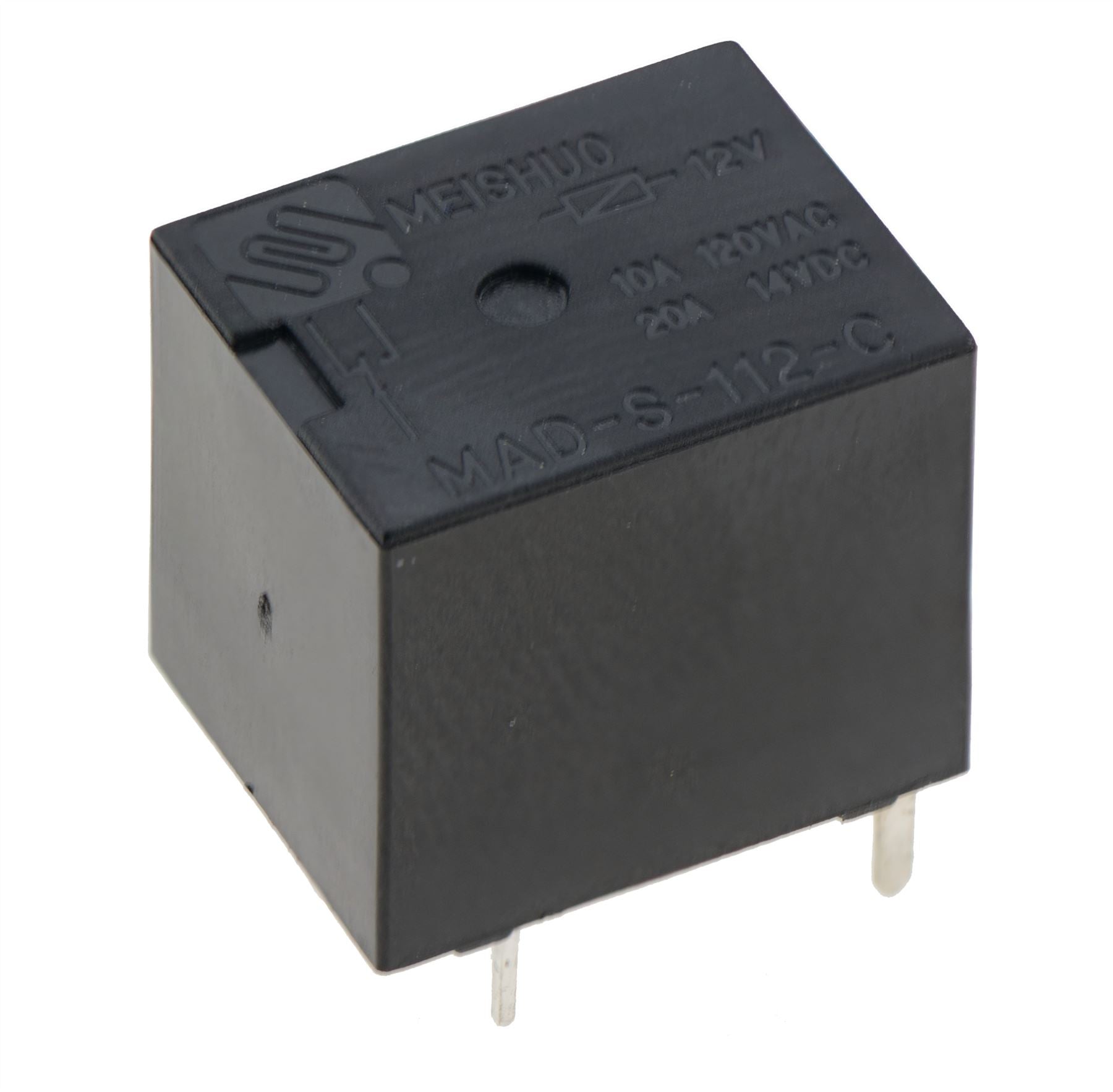

12V SPDT Mini Changeover PCB Power Relay 20A MAD-S-112-C

12V changeover relay with SPDT contacts suitable for automotive and general purpose applications. The relay is designed for PCB mounting and has a compact sealed design to protect from dust and water.

SPDT contacts

High resistance to vibrations

Coil voltage: 12VDC

Coil power: 600mW

Maximum switching current: 20A (at 16VDC)

Maximum switching voltage: 60VDC

Maximum switching power: 280mW

Dimensions: 15.25 x 12.25 x 13.6mm
