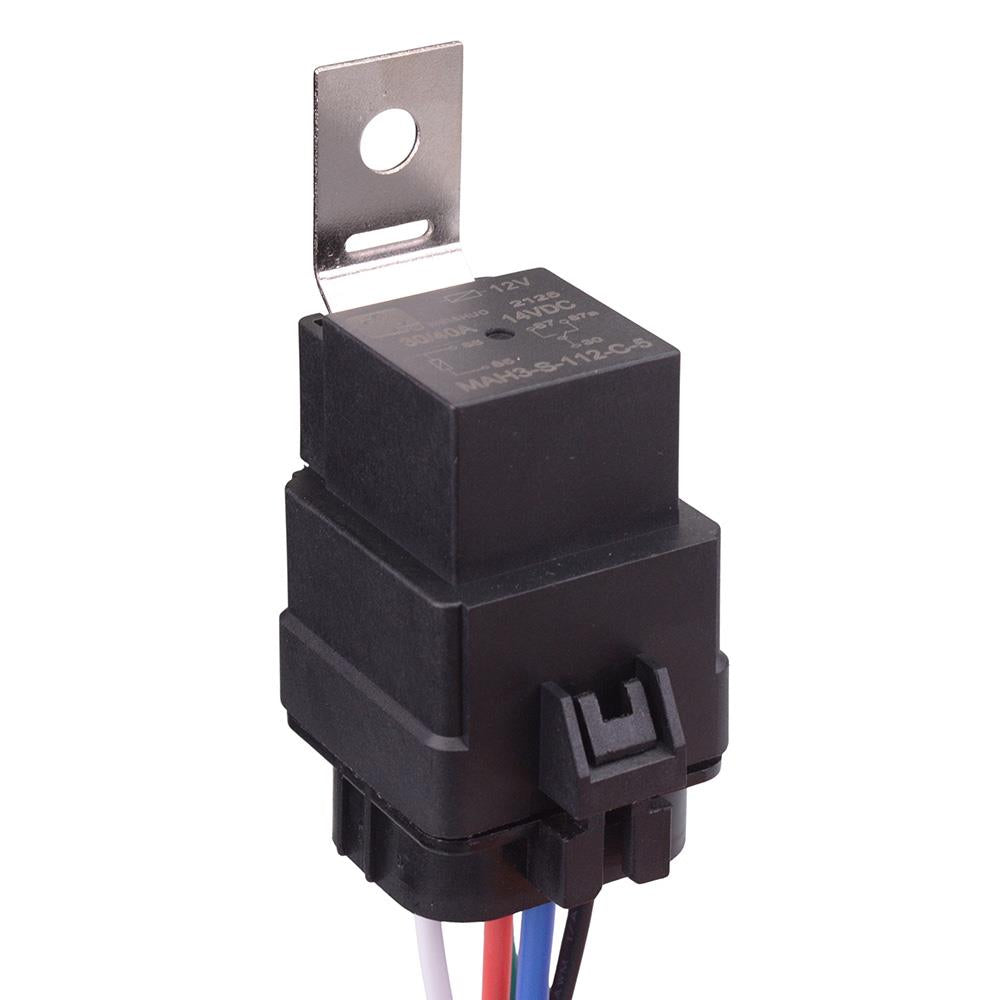

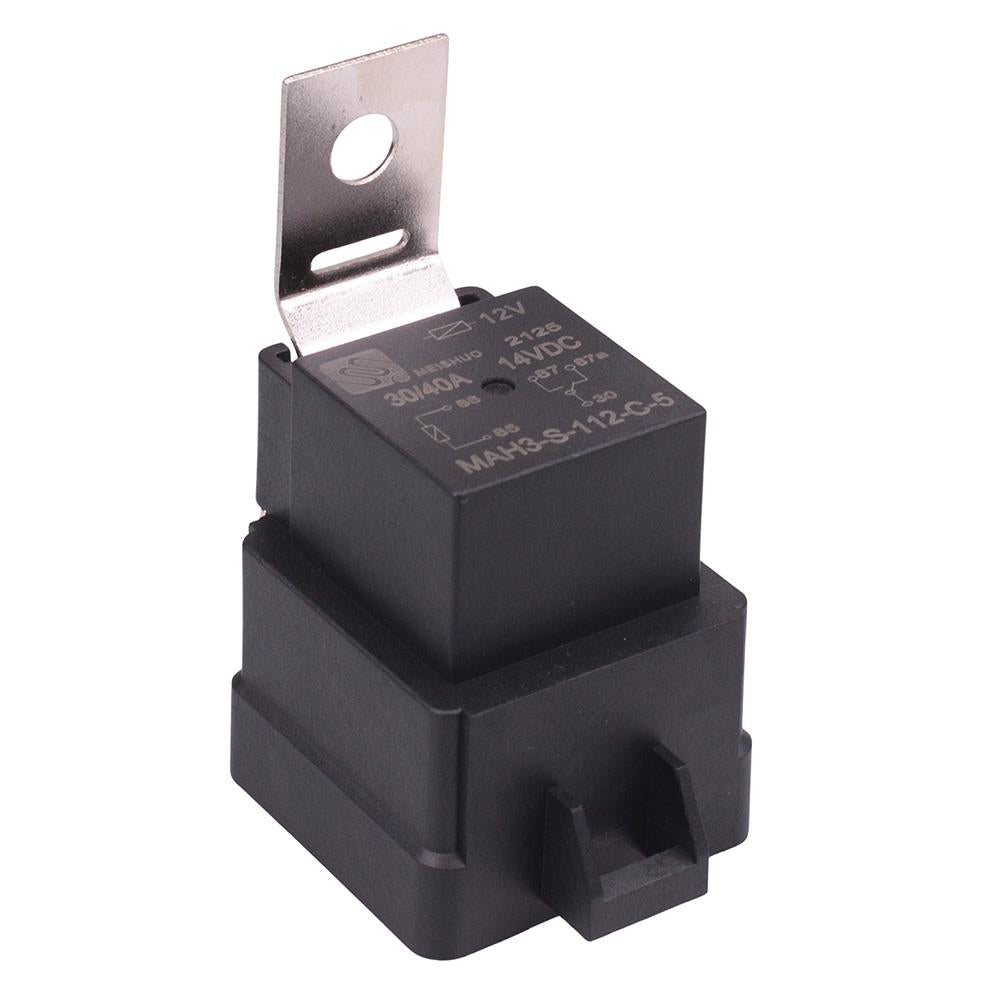

12V SPDT Mini Automotive Skirted Relay Metal Bracket 40A MAH3-S-112-C-5

12V mini automotive relay featuring SPDT contacts and 40A current rating. The relay features a bracket and skirted design providing a waterproof seal with the socket. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Waterproof skirted design

Excellent shock and vibration resistance

Wide temperature range

Bracket: metal

Maximum continuous current: 40A

Contact rating: 14VDC 40A/30A (NO/NC)

Coil voltage: 12VDC

Coil power: 2.4W

Contacts: SPDT

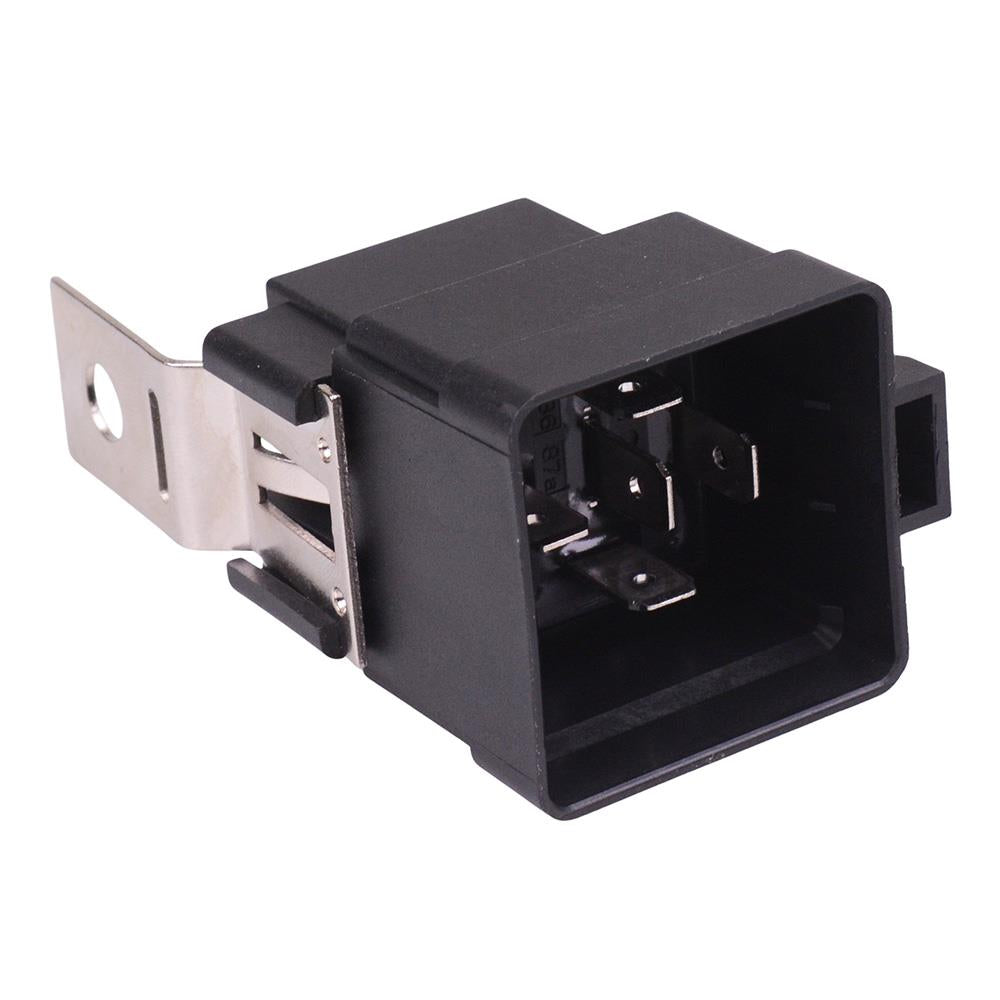

Terminals: 6.3mm quick connect

Body dimensions: 43.2 x 35.1 x 35.1mm
