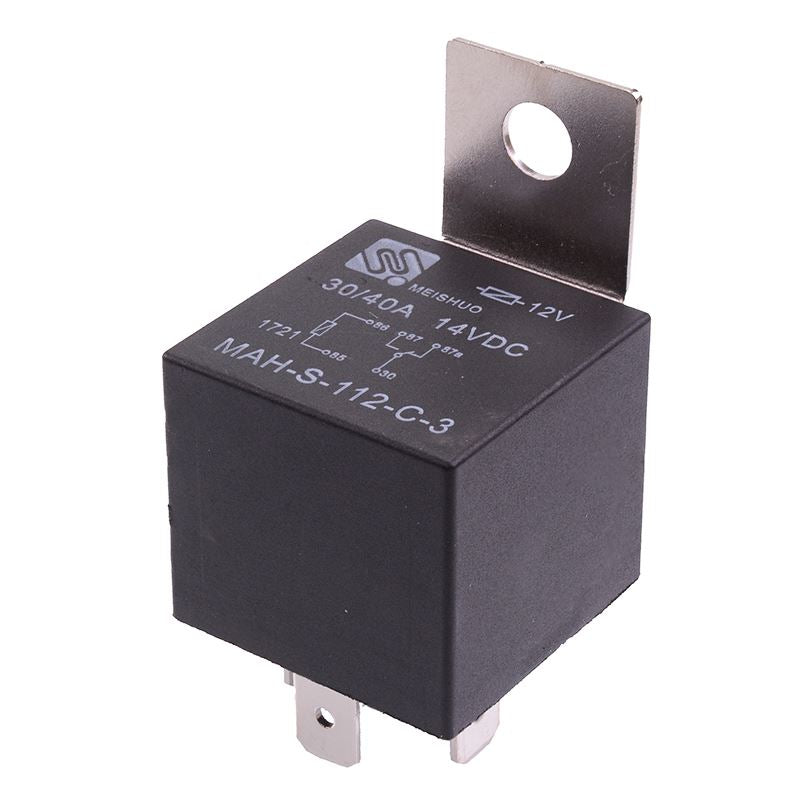

12V SPDT Mini Automotive Relay Bracket 40A MAH-S-112-C-3

12V mini automotive relay featuring SPDT contacts and metal bracket. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 5 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Bracket: metal

Maximum continuous current: 40A/30A (NO/NC)

Contact rating: 14VDC 40A/30A (NO/NC)

Coil voltage: 12VDC

Coil power: 1.7W

Contacts: SPDT

Terminals: 6.3mm quick connect

Body dimensions: 27.8 x 27.8 x 25.1mm
