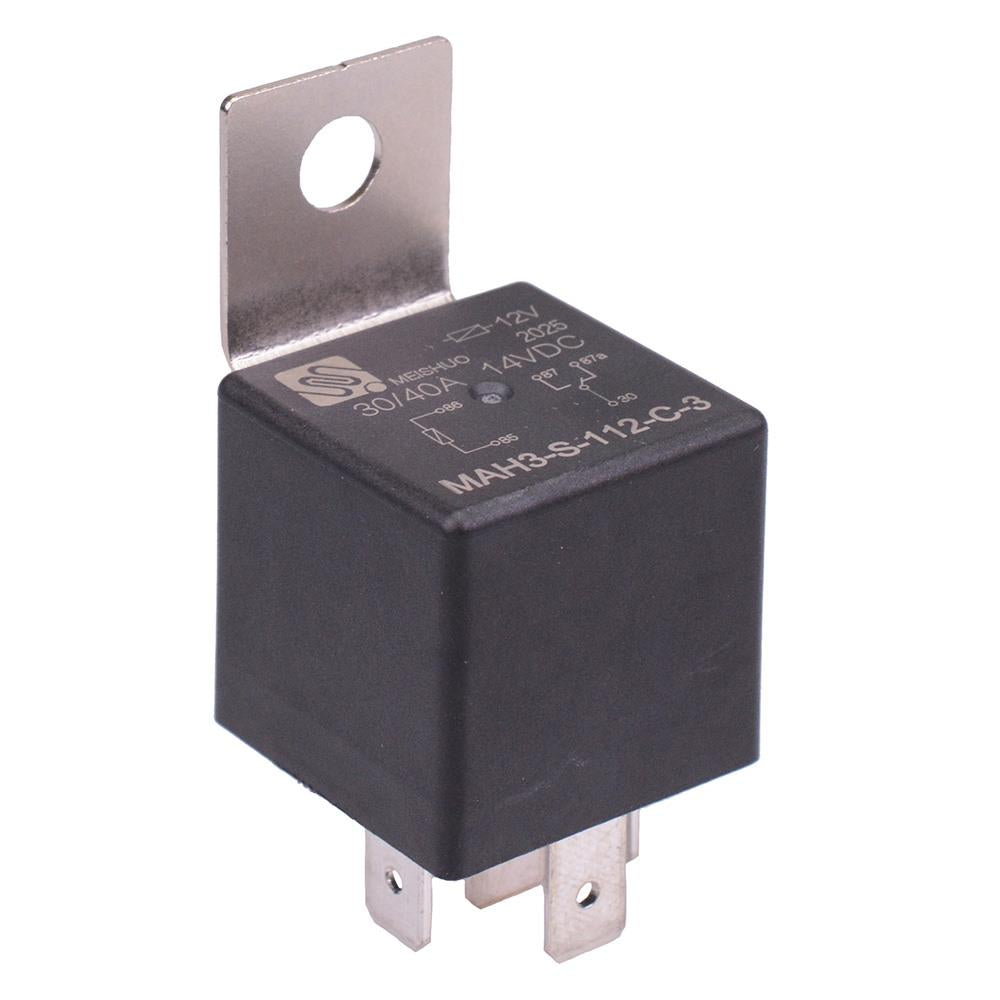

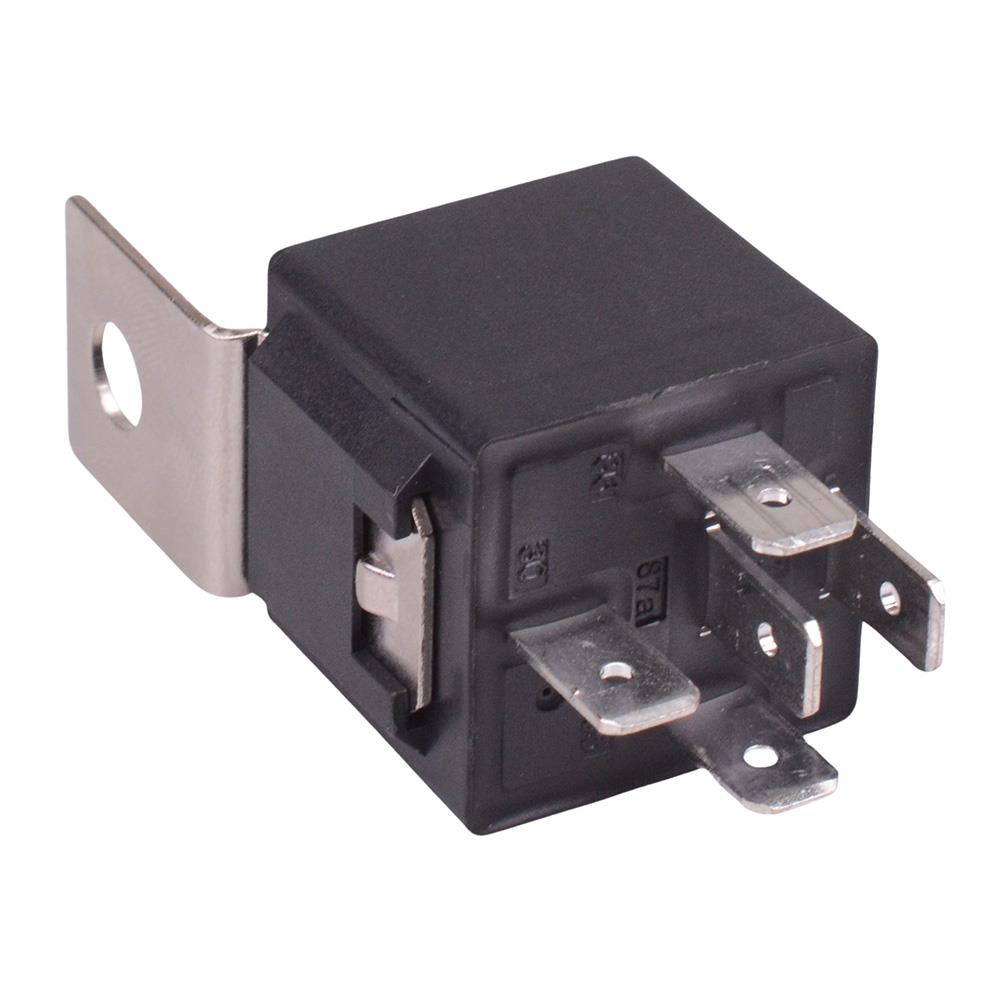

12V SPDT Mini Automotive Relay 40A MAH3-S-112-C-3

12V mini automotive relay featuring SPDT contacts and 40A current rating. The relay features a compact sealed design and metal mounting bracket. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Bracket: without

Maximum continuous current: 40A

Contact rating: 14VDC 40A/30A (NO/NC)

Coil voltage: 12VDC

Coil power: 1.7W

Contacts: SPDT

Terminals: 6.3mm quick connect

Body dimensions: 25 x 26 x 26mm (height x width x depth)
