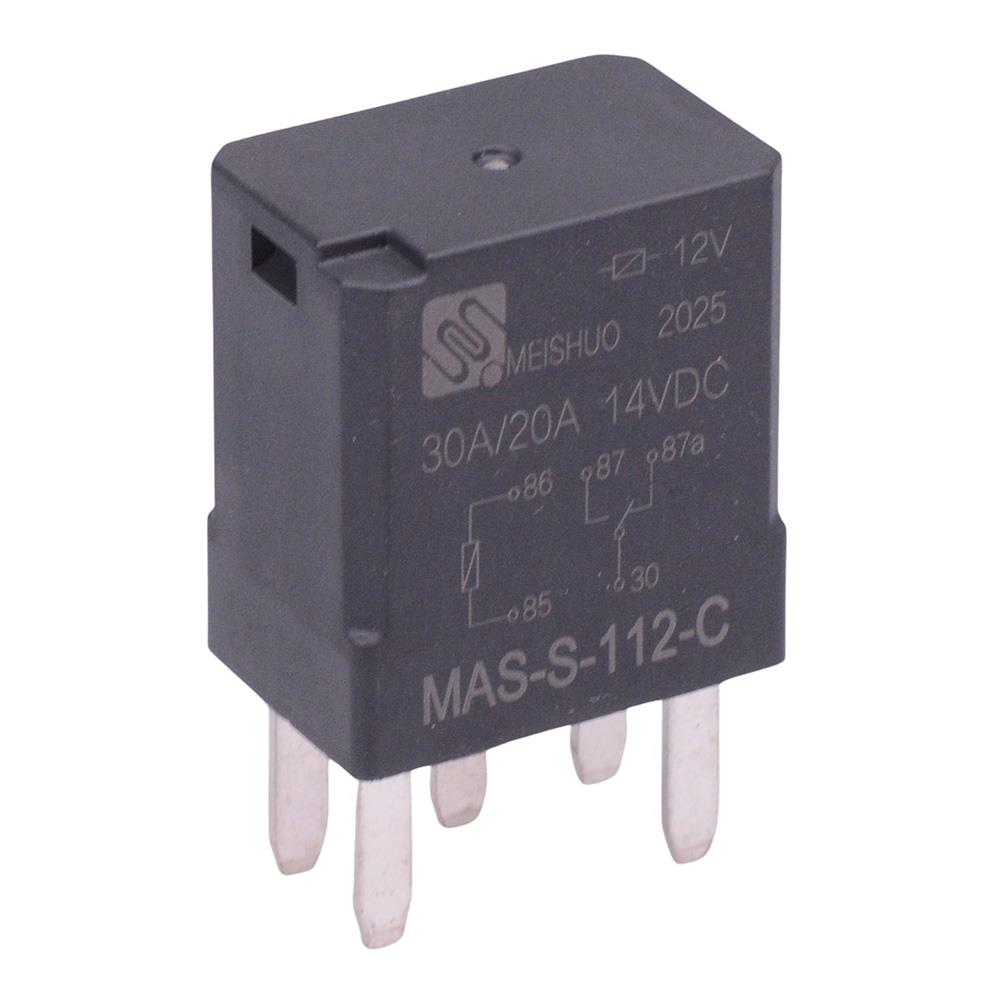

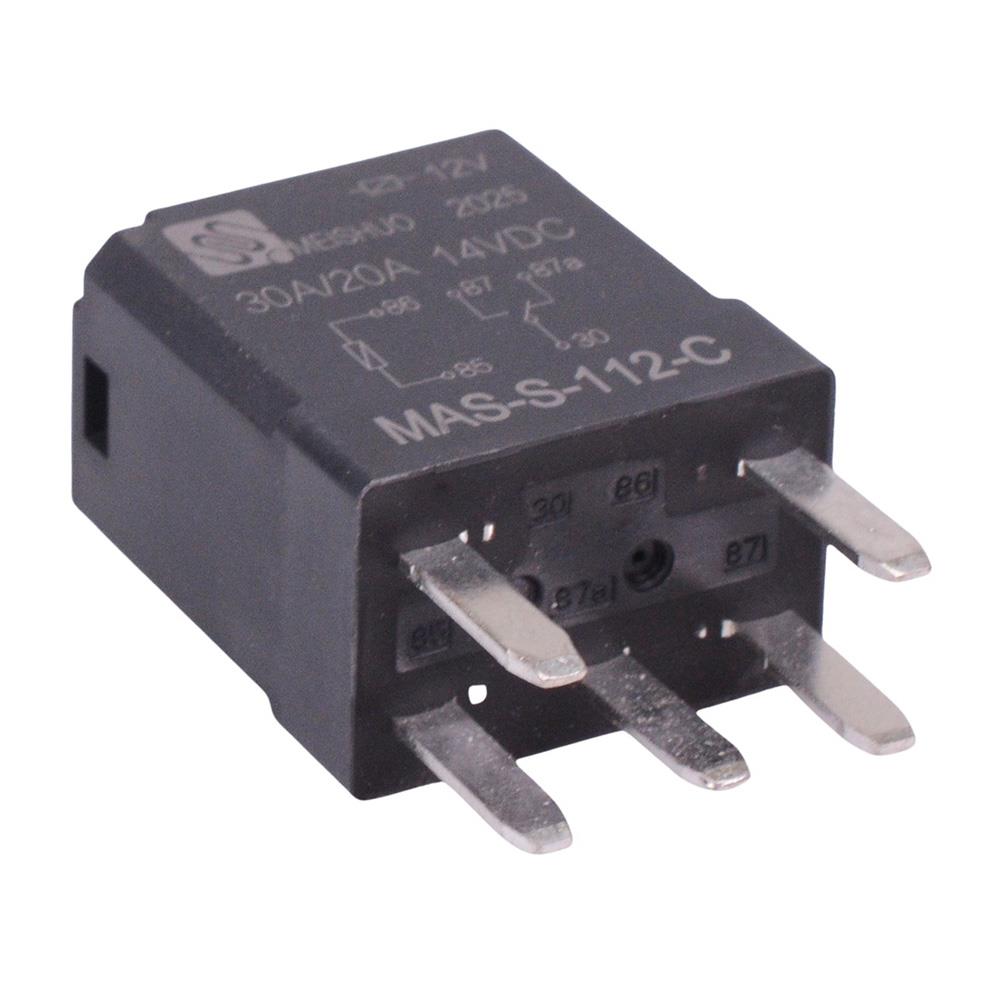

12V SPDT Micro Automotive Relay MAS-S-112-C

12V micro automotive relay featuring SPDT contacts and compact package designed for PCB mounting. The relay features a sealed construction and excellent reliability making the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Maximum continuous current: 30A NO, 20A NC

Maximum switching voltage: 28VDC

Coil voltage: 12VDC

Coil power: 1.5W

Contacts: SPDT

Terminals: PCB

Body dimensions: 22.5 x 15 x 25mm (L x W x H)
