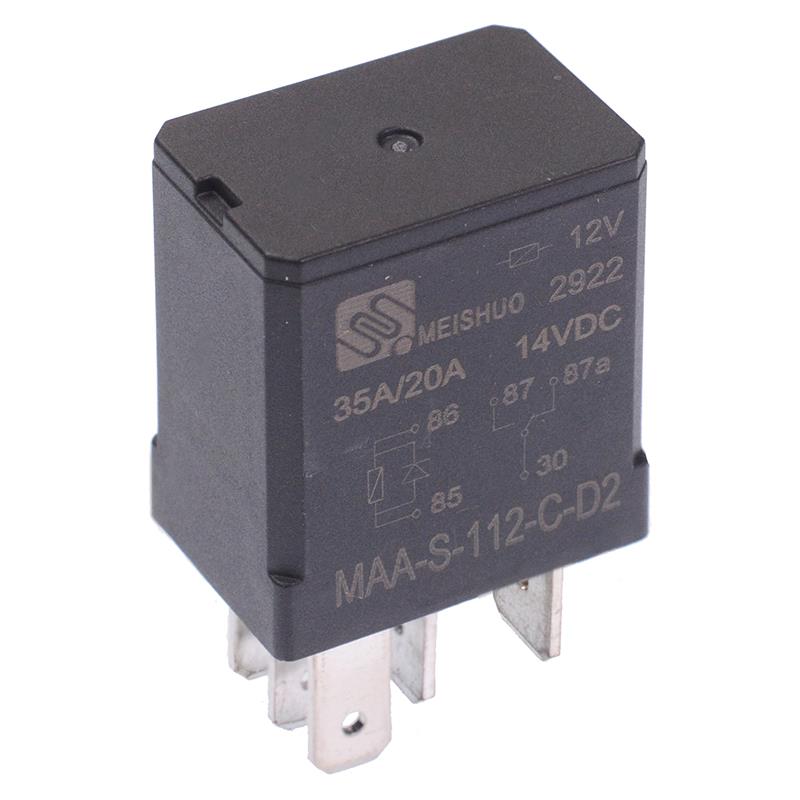

12V SPDT Micro Automotive Relay Diode 35A MAA-S-112-C-D2

12V micro automotive relay featuring SPDT contacts and diode across the coil protecting your equipment against voltage spikes. The relay features a sealed construction and 6.3mm quick connect terminals, compatible with standard 5 pin sockets. The excellent reliability makes the relay suitable for a wide range of automotive applications and replacing alternative brand relays.

Excellent shock and vibration resistance

Wide temperature range

Maximum continuous current: 35A/20A (NO/NC)

Contact rating: 14VDC 35A/20A (NO/NC)

Coil voltage: 12VDC

Coil power: 1.6W

Contacts: SPDT

Terminals: 6.3mm quick connect

Body dimensions: 23.3 x 15 x 25mm
