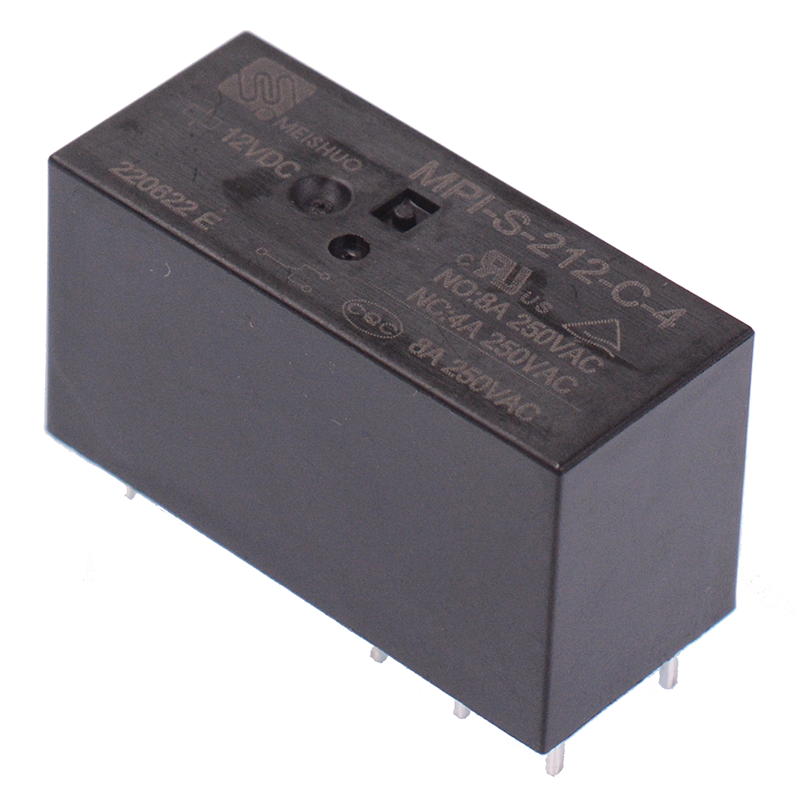

12V High Power PCB Relay 8A DPDT MPI-S-212-C-4

12V miniature high power relay featuring DPDT contacts and 8A maximum switching current. The relay is housed in a compact package and is suitable for through hole PCB mounting or IC sockets.

12V coil voltage

DPDT contact configuration

Sealed construction

Rated load: 8A 250VAC

Maximum switching current: 8A

Maximum switching voltage: 440VAC / 30VDC

Maximum switching power: 2000VA

Dimensions: 29 x 12.7 x 15.9mm (L x W x H)
