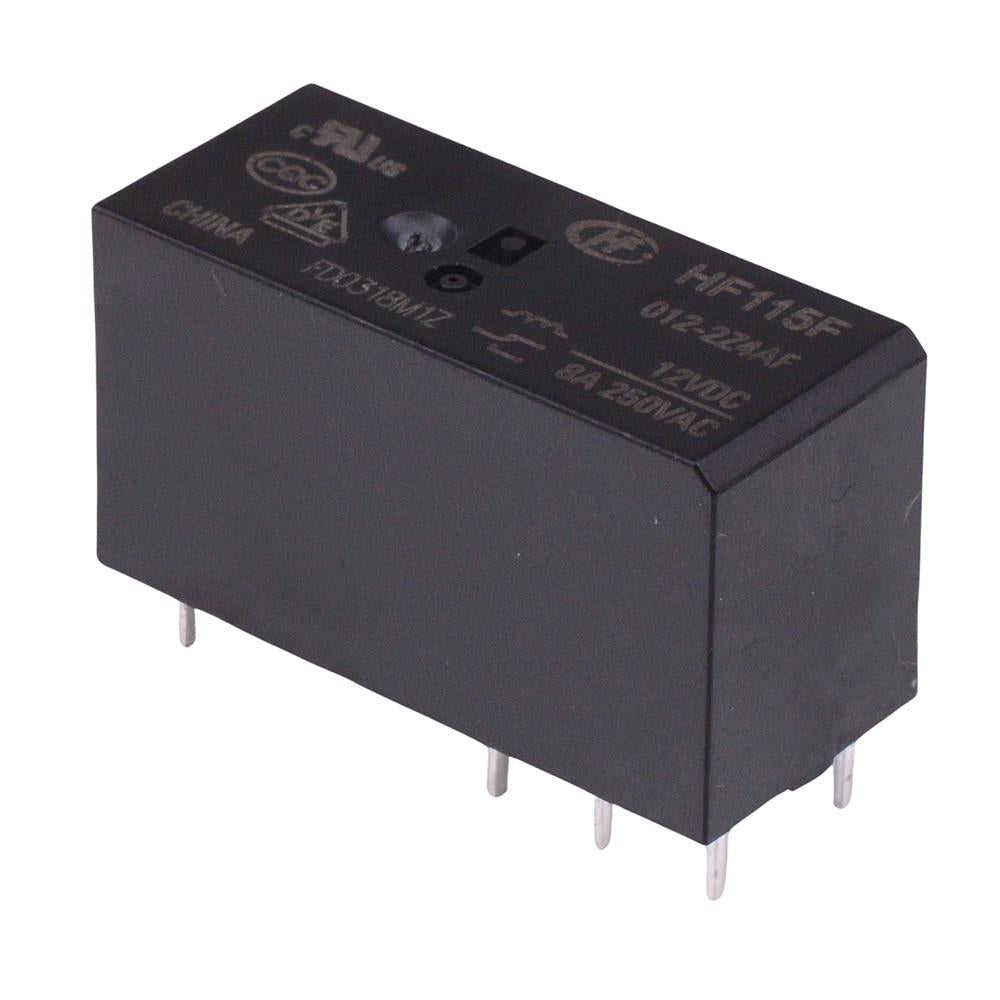

12V High Power 8A PCB Relay DPDT HF115/012-2Z4AF

12V High Power 8A PCB Relay DPDT HF115/012-2Z4AF

£3.56
£3.14 £3.56
Sale Sold out

Order Code: 550024

Delivery calculated at checkout.
Available Online Only

Out of stock
View full details

Product Description

12V miniature high power relay manufactured by HongFa, featuring DPDT contacts and 8A maximum switching current. The relays feature 400mW coil power and are suitable for a wide range of through hole PCB applications.

  • 12V coil voltage
  • DPDT contact configuration
  • Contact rating: 8A 250VAC
  • Maximum switching current: 8A
  • Maximum switching voltage: 440VAC / 300VDC
  • Maximum switching power: 2000VA
  • Pin pitch: 5.04mm
  • Dimensions: 29 x 12.7 x 15.7mm (L x W x H)
