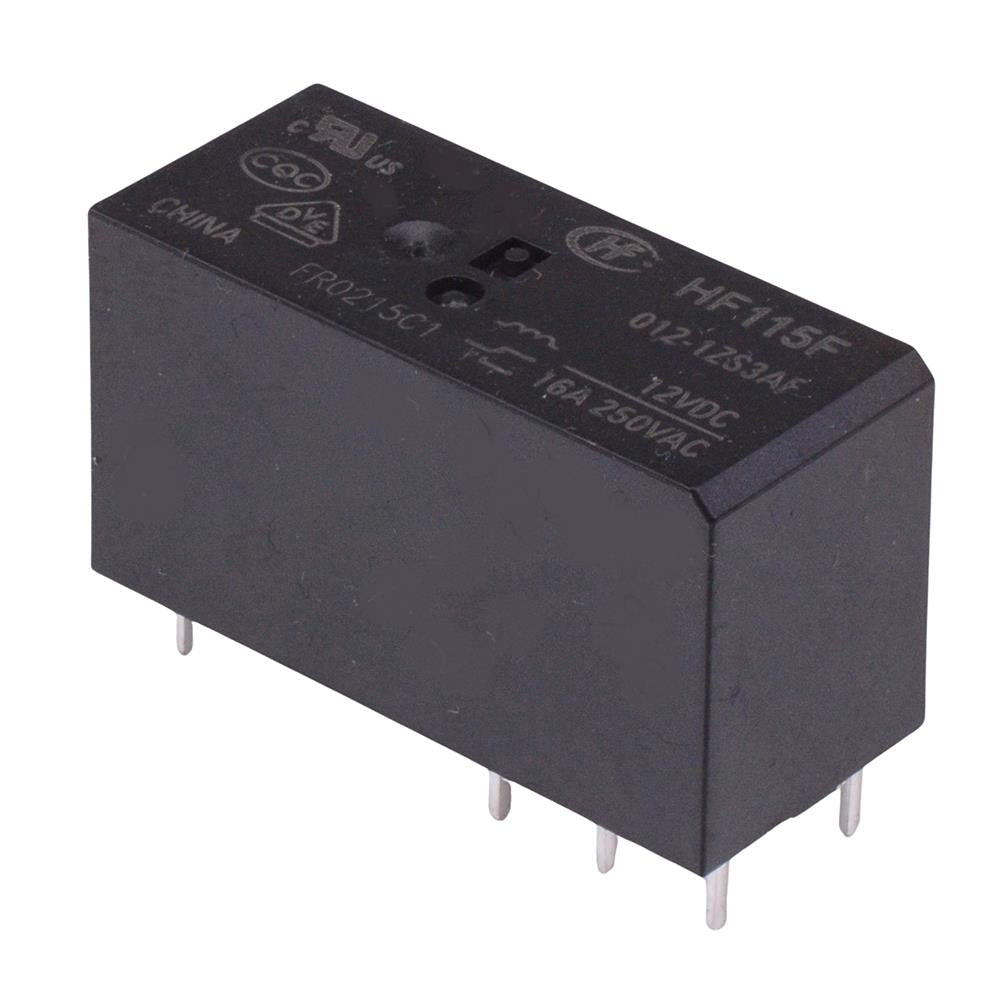

12V High Power 16A PCB Relay SPDT HF115/012-1ZS3AF

12V High Power 16A PCB Relay SPDT HF115/012-1ZS3AF

£2.96
£2.61 £2.96
Sale Sold out

Order Code: 550025

Delivery calculated at checkout.
Available Online Only

Out of stock
View full details

Product Description

12V miniature high power relay manufactured by HongFa, featuring SPDT contacts and 16A maximum switching current. The relays feature 400mW coil power and are suitable for a wide range of through hole PCB applications.

  • 12V coil voltage
  • DPDT contact configuration
  • Contact rating: 16A 250VAC
  • Maximum switching current: 16A
  • Maximum switching voltage: 440VAC / 300VDC
  • Maximum switching power: 4000VA
  • Pin pitch: 5.04mm
  • Dimensions: 29 x 12.7 x 15.7mm (L x W x H)
