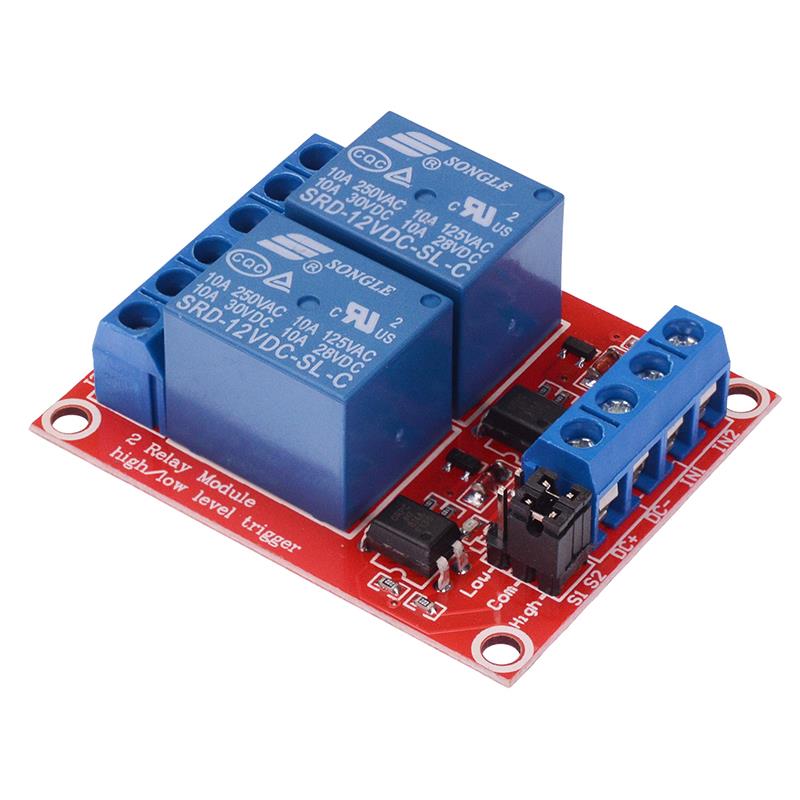

12V 2 Channel Relay Board Module Active Low - Terminal Blocks

2 channel active low relay board with 12V relays capable of being switched on-off by an opto-isolated digital input. The relays are controlled by a microcontroller connected to the output pin and require a minimum 1.5V to switch the inputs ON. The modules can be controlled directly by a microcontroller and are suitable for 12V applications.

2 Channel

Maximum switching voltage: 250VAC / 30VDC

Maximum switching current: 10A

Module operating voltage: 12V

Each relay features an LED indicator

Dimensions: 50 x 26 x 18.5mm (Length x Width x Height)
