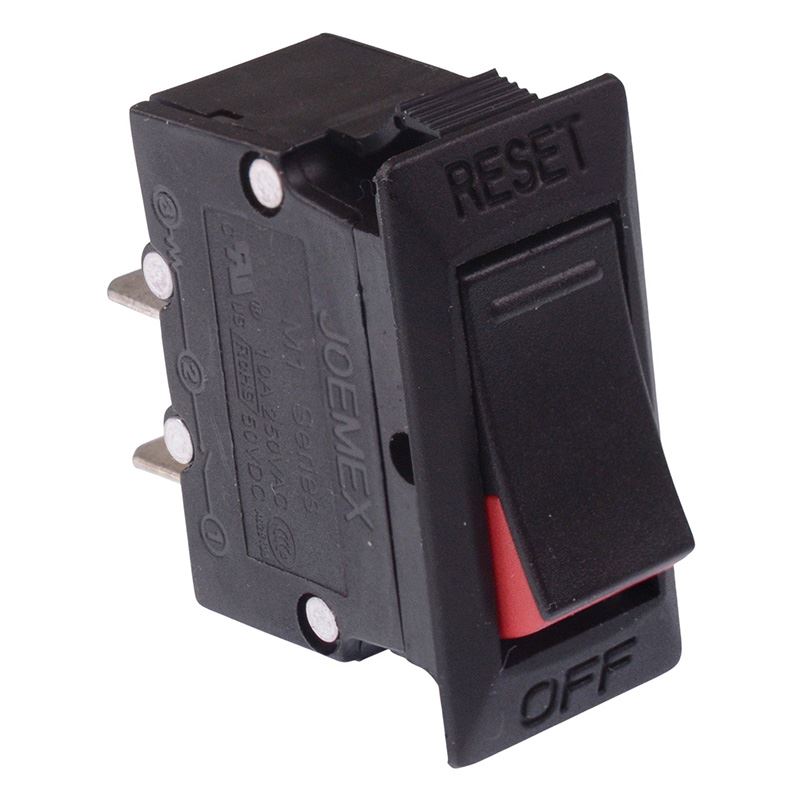

10A Rocker Switch Circuit Breaker M110B1BR3

10A circuit breaker rocker switch featuring a red actuator which indicates when the breaker is tripped or awaiting reset. The circuit breaker is suitable for snap-fit panel mounting and features quick connect terminals.

Panel cut-out: 28.5 x 13.5mm

6.35mm quick connect terminals

Interrupting capacity: 1000A

UL & CSA approved

Dimensions: 36.3 x 32 x 15 (height x length x width)
