MitchElectronics Model Miniature Pack Kit/Traffic Light/Chaser/Transistor Flasher

MitchElectronics Model Miniature Pack Kit/Traffic Light/Chaser/Transistor Flasher

£14.99
£14.99
Sale Sold out

Order Code: 33-049

Delivery calculated at checkout.

2 in stock
View full details

Product Description

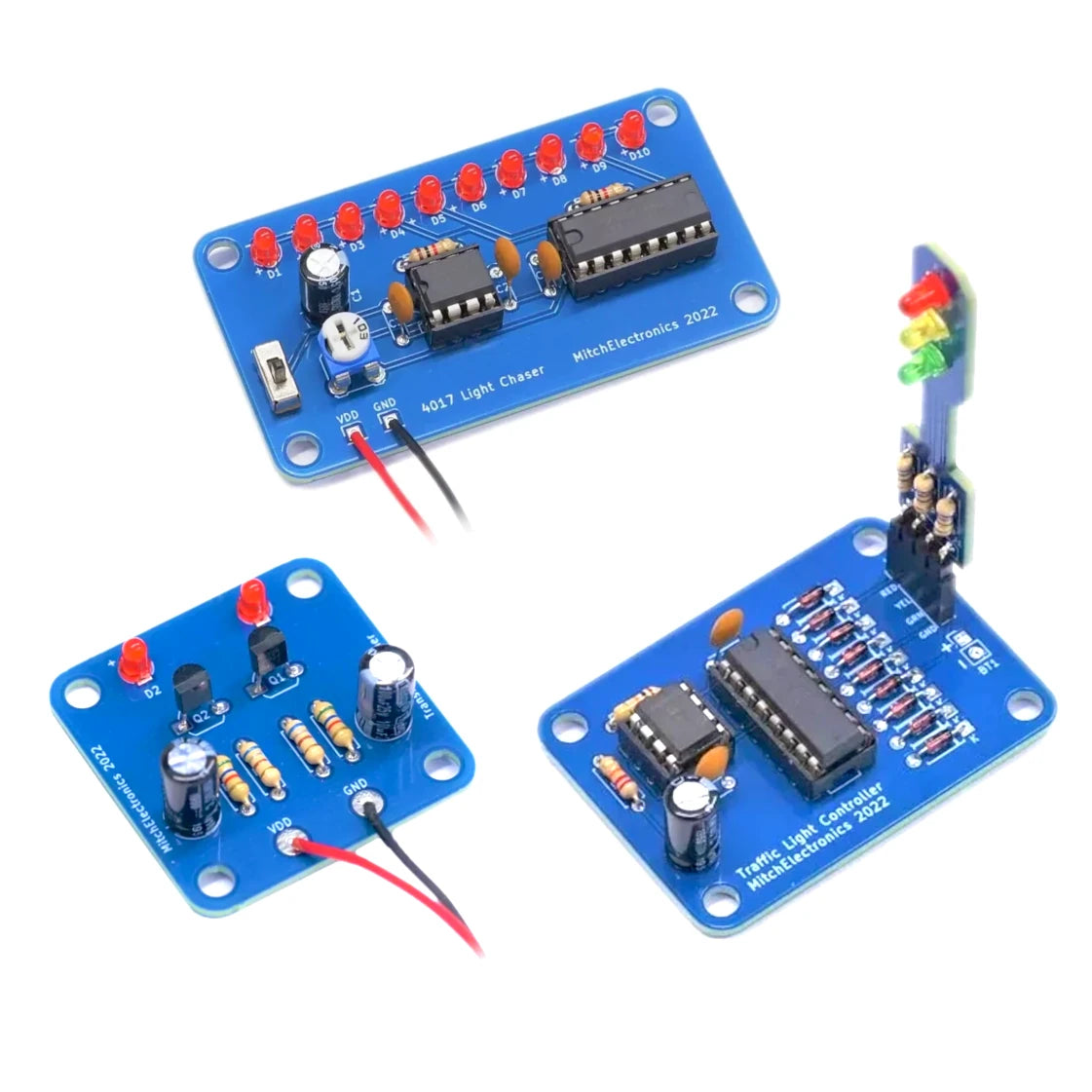

The Model Miniature Solder Pack by MitchElectronics is the perfect introduction to hands-on electronics, combining learning and creativity in one compact three-piece kit. Designed for beginners, hobbyists, and STEM enthusiasts, this build-it-yourself set includes a traffic light circuit, a transistor flasher, and a dynamic light chaser, each offering a practical way to understand fundamental soldering techniques and electronic principles. Whether you're developing DIY electronics skills, teaching basic circuitry, or looking for an engaging project, this miniature soldering kit delivers a rewarding experience while reinforcing key concepts like signal flow, timing, and transistor operation. Ideal for educational use, home projects, or gifting, the MitchElectronics Model Miniature Solder Pack stands out as an accessible, fun, and educational electronics kit for all skill levels.

Traffic Light Kit

Need a traffic light that is true to UK standards? Look no further as this kit will let you build a UK traffic light with the correct light patterns, excellent project for beginners and learners alike!

The faithful traffic light is something that has been around since the first cars after drivers had difficulty in deciding who had right of way at a junction. The modern traffic light found in the UK is often connected to an intelligent network of controllers and logic to try and keep traffic moving as efficiently as possible. While this project is far more trivial, you will learn how to build a traffic light that uses the correct colour sequence found on many UK traffic lights! This circuit is based around a 555 astable oscillator as a clock source, a 4017 IC as the counter stage, and a diode matrix for creating the light patterns.

Product specifics

  • Component Count: 53
  • Battery Powered?: Yes, 9V PP3
  • Operating Voltage: 3V to 16V
  • Operating Frequency: N/A
  • Dimensions (PCB) : 59mm x 43mm
  • Mounting Holes: Yes
  • Prebuilt: No – Kit form
  • Batteries Not Included

Included in this kit

  • 1 x 16 DIP Socket
  • 1 x 8 DIP Socket
  • 1 x 4017
  • 1 x 555
  • 1 x 10K Resistor
  • 1 x 22K Resistor
  • 2 x 100nF Capacitors
  • 1 x 100uF Capacitor
  • 9 x 1N4148
  • 1 x 4 Way Pin Socket
  • 1 x PP3 Connector
  • 1 x Controller PCB
  • 3 x 680R Resistors
  • 1 x Red LED
  • 1 x Yellow LED
  • 1 x Green LED
  • 1 x 4 Way Pin Header
  • 1 x Light PCB

Applications

The Traffic Light is an ideal kit for scale models such as train sets, diorama, and table-top wargaming. The kit is also ideal for teaching students about the 4017 counter and how its multiple outputs can be combined to create specific patterns that repeat continuously. As the kit can be constructed in under an hour, the Traffic Light is ideal for training students on how to solder, and the LED nature of the kit can help inspire completion of the project.

Instructions

Click here...

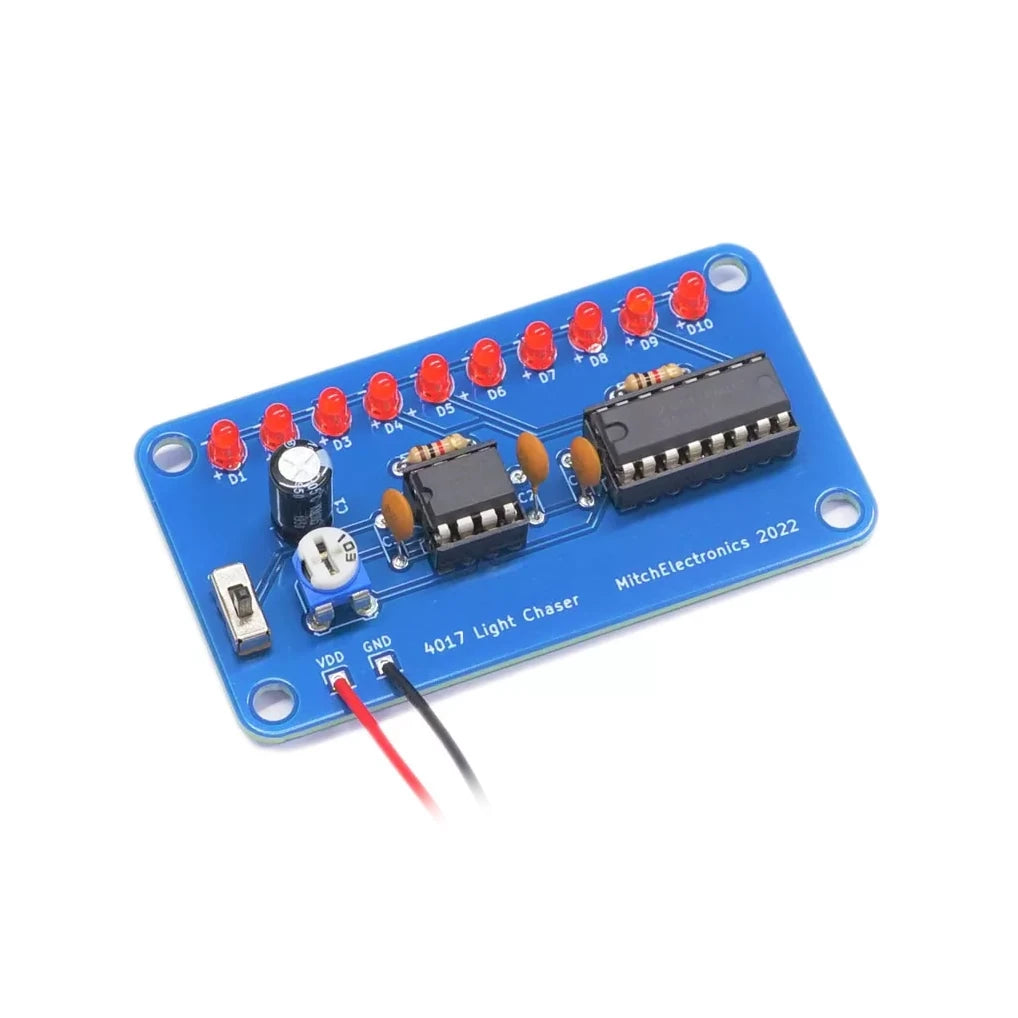

Light Chaser Kit

4017 light chaser kit with a potentiometer for variable stepping speed, 4017 counter for logic, and 555 timer for timing. Perfect for beginners!

The 4017 is a 5-stage Johnson counter that has 10 outputs that turn on one after another. This IC is a commonly used 4000 series part and can be used in many scenarios including finite state machines, simple counters, and even time division. In this kit, you will build a 4017 based variable light chaser that is great for solder practice as well as entertaining for sci-fi looking scenes.

Product specifics

  • Component Count: 24
  • Battery Powered?: Yes, 9V PP3
  • Operating Voltage: 5V to 16V
  • Operating Frequency: N/A
  • Output Voltage: N/A
  • Output Current: N/A
  • Dimensions (PCB) : 48mm x 32mm
  • Mounting Holes: Yes
  • Prebuilt: No – Kit form
  • Batteries Not Included

Included in this kit

  • 1 x 16 DIP Socket
  • 1 x 8 DIP Socket
    1 x 4017
  • 1 x 555
  • 2 x 1K Resistors
  • 3 x 100nF Capacitors
  • 1 x 100uF Capacitor
  • 1 x 10K Potentiometer
  • 1 x Small Slide Switch
  • 10 x Red LED
  • 1 x PP3 Connector
  • 1 x PCB

Applications

The 4017 Light Chaser kit is a highly suitable project for classrooms as it is simple in design, uses high-quality parts, and can be constructed in under an hour. The 4017 Light Chaser is also ideal as a teaching aid demonstrating how the 4017 operates, how the 555 can be used as a clock source, and how to use LEDs in parallel. The 4017 Light Chaser is also ideal for those who want to create light chase displays including LED ties, signs, decoration, and props for video / TV. An alternative to the 4017 Light Chaser is the Traffic Light Controller which uses the 4017 to create the UK traffic light sequence which can be ideal for those who want to create miniatures.

Instructions

Click here...


Transistor Flasher Kit

This Transistor Flasher Kit will let you build a two-transistor flasher that flashes two LEDs similar to train crossing lights, excellent project for beginners and learners alike!

In electronics, it is sometimes required to have a signal that consistently creates a continuous pulse (like the second hand on a clock that ticks every second). Examples of where this would be useful would include:

  • Digital clock (to track time)
  • Computers (the CPU needs to be triggered by pulses)
  • Most digital systems (usually require a central clock that synchronises all parts)

A circuit that produces a pulse every so often is called an oscillator. Once powered, the output of an oscillator will turn on and then turn off. Once this cycle has been completed it repeats itself indefinitely (so long as there is power). But how is an oscillator made? How do you get some components to keep on pulsing? In this kit, you will be creating a two-transistor oscillator that uses two transistors and a few other components to create an oscillator that generates a few pulses every second so that it flashes (that is why it is called a flasher).

Product specifics

  • Component Count: 12
  • Battery Powered?: Yes, 9V PP3
  • Operating Voltage: 3V to 16V
  • Operating Frequency: Approx 2Hz
  • Output Voltage: N/A
  • Output Current: N/A
  • Dimensions (PCB): 30mm x 26mm
  • Mounting Holes: Yes
  • Prebuilt: No – Kit form
  • Batteries Not Included

Included in this kit

  • 2 x 2N3904
  • 2 x 100uF Capacitors
  • 2 x 680R Resistors
  • 2 x 5K6 Resistors
  • 2 x Green LED
  • 1 x PP3 Connector
  • 1 x PCB

Applications

The Transistor Flasher is an ideal kit for beginners who want to practice soldering electronic components to a PCB. While the component count is very low, the variety of components gives a builder the opportunity to read PCB drawings, learn how to solder resistors, capacitors, transistors, and LEDs, and learn how transistor oscillators work. Furthermore, the kit is ideal for use in the classroom as it can be constructed in under an hour, and has an entertaining visual output.

Instructions

Click here...



Notes

Note that product specifics such as output frequency depend on the tolerance of the components. The numbers provided here are an approximation only.

All parts sold by MitchElectronics are compliant with RoHS and REACH directives which ensure that they can be used in commercial environments as well as complying with environmental laws.
