CR2032 Coin Cell PCB Mounting Battery Holder
CR2032 Coin Cell PCB Mounting Battery Holder
Regular price
£1.69
Regular price
Sale price
£1.69
Delivery calculated at checkout.
Order Code: 14-146
Quantity
We have 5 in stock in Southampton
Couldn't load pickup availability
Product Description

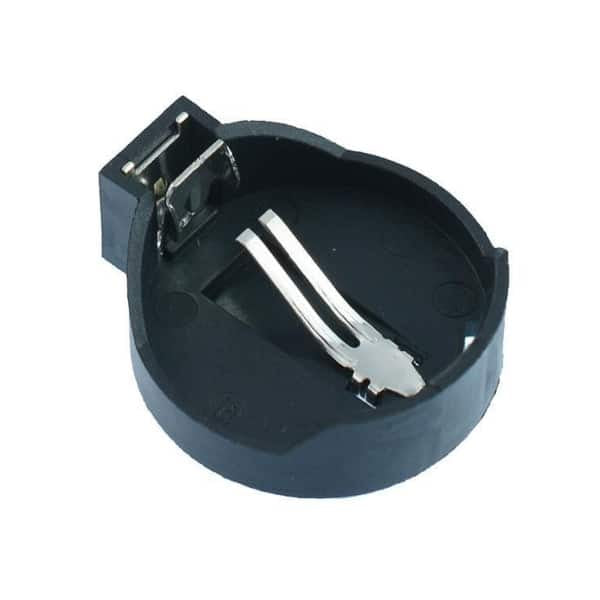

Battery holder for CR2032 coin cell batteries. The holder features a raised rim to ensure the battery is secure, making it ideal for applications where battery replacements are required.
Specifications
| Number of Batteries | 1 |
| Battery Size | CR2032 |
| Connector | PCB Pins (20mm Pitch) |
| Contact Resistance | 30mΩ max |
| Insulation Resistance | 1000MΩ Min 500VDC |
| Dielectric Strength | 500VAC 1 minute |
| Material | Casing PBT |
| Contacts Brass | |
| Dimensions | 24.3 x 8.7mm (Diameter x Height) |
| Operating Temperature | -25°C to +85°C |
