5mm 3.5V To 13V Flashing Red LED
5mm 3.5V To 13V Flashing Red LED
Regular price
£1.99
Regular price
Sale price
£1.99
Delivery calculated at checkout.
Order Code: 04-198
Quantity
Couldn't load pickup availability
Product Description

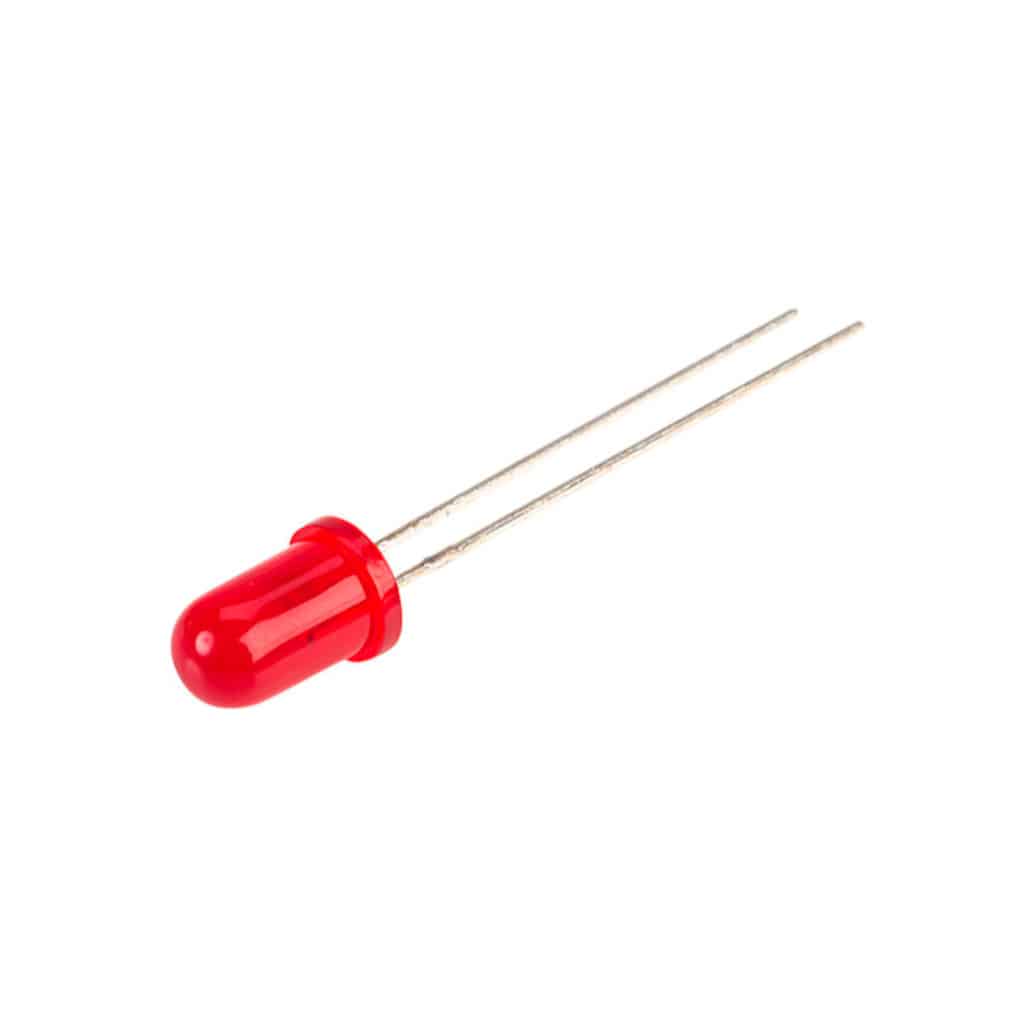

5mm Red diffused LED, that has a built in IC which produces a continuous flashing at between 1.5 and 3.0Hz. Ideal for use in warning devices and alarms. Wide range operating voltage of between 3.5V to 13V
Specifications
| Colour / Type | Red Diffused |
| Size | 5mm |
| Forward Voltage Minimum | 2.2V |
| Forward Voltage Maximum | 2.8V |
| Reverse Voltage | 5V |
| Forward Current | 15mA |
| DC Reverse Current | 30µA |
| Pulse forward current | 50 mA Pulse width max. 10ms. Duty ratio max. 1/10 |
| Power dissipation | 45 mW |
| Brightness | 10mcd |
| Viewing Angle | 60° |
| Wavelength | 700nm |
| Working Temperature | -40°C to +95°C |
